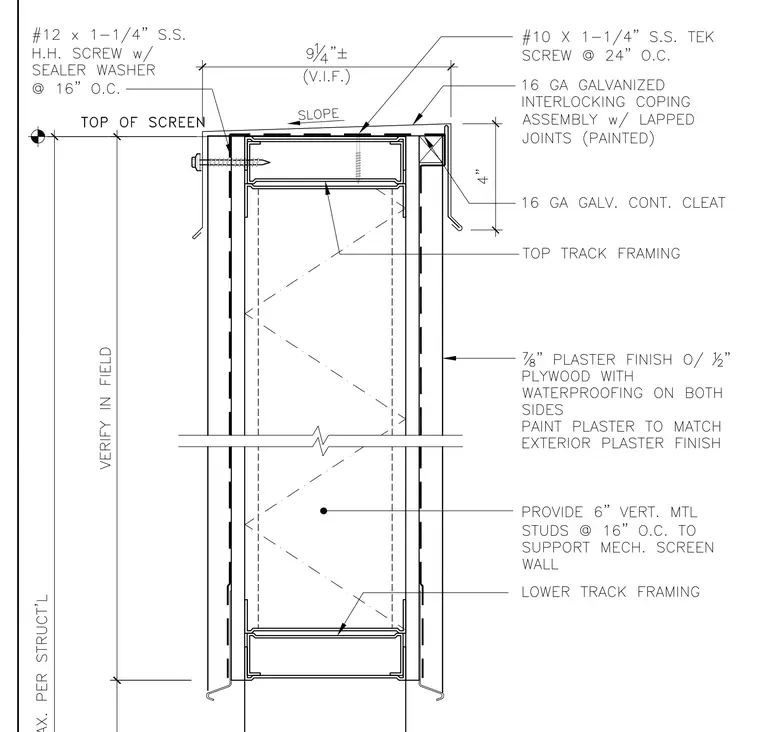

Top termination of a mechanical screen wall with a sixteen gauge galvanized interlocking coping assembly featuring lapped joints and painted finish. The coping is secured at the top with number ten by one and one quarter inch stainless steel Tek screws at twenty-four inches on center and anchored to the side with number twelve by one and one quarter inch stainless steel hex head screws with sealer washers at sixteen inches on center. The coping bears on a sixteen gauge galvanized continuous cleat and top track framing. The wall framing consists of six inch vertical metal studs spaced at sixteen inches on center supporting a seven eighths inch plaster finish over one half inch plywood with waterproofing on both sides and lower track framing.
