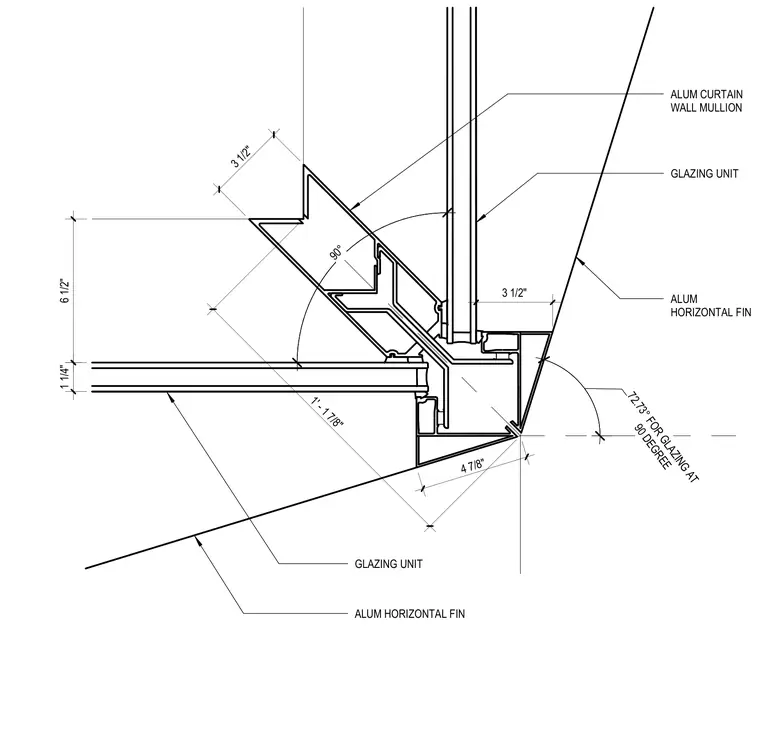

An aluminum curtain wall corner mullion receives adjoining glazing units at a ninety-degree angle with a specialized transition geometry. Exterior aluminum horizontal fins integrate with the mullion profiles, projecting outward with detailed dimensional clearances of three and one-half inches and six and one-half inches. Glazing units fit securely into the framing channels with associated spacer and gasket profiles. A seventy-two point seven three degree layout accommodates the ninety-degree glazing corner condition.
GLAZING UNIT GLAZING UNIT ALUM HORIZONTAL FIN 6 1/2" 1' - 1 7/8" 4 7/8" 1 1/4" 90 DEGREE 72.73° FOR GLAZING AT 90° ALUM HORIZONTAL FIN ALUM CURTAIN WALL MULLION 3 1/2" 3 1/2"
