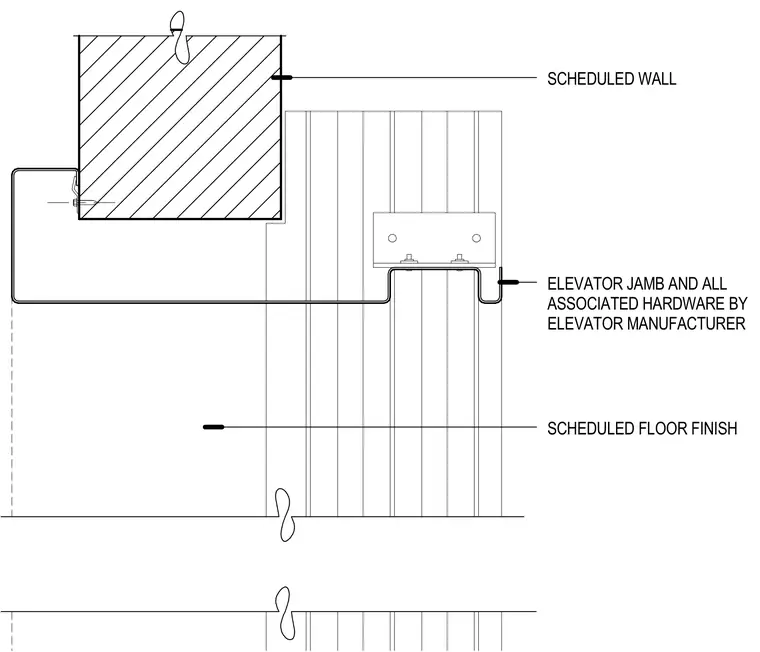

The assembly details the connection of the elevator jamb and all associated hardware provided by the elevator manufacturer to the scheduled wall and scheduled floor finish.
SCHEDULED WALL ELEVATOR JAMB AND ALL ASSOCIATED HARDWARE BY ELEVATOR MANUFACTURER SCHEDULED FLOOR FINISH
