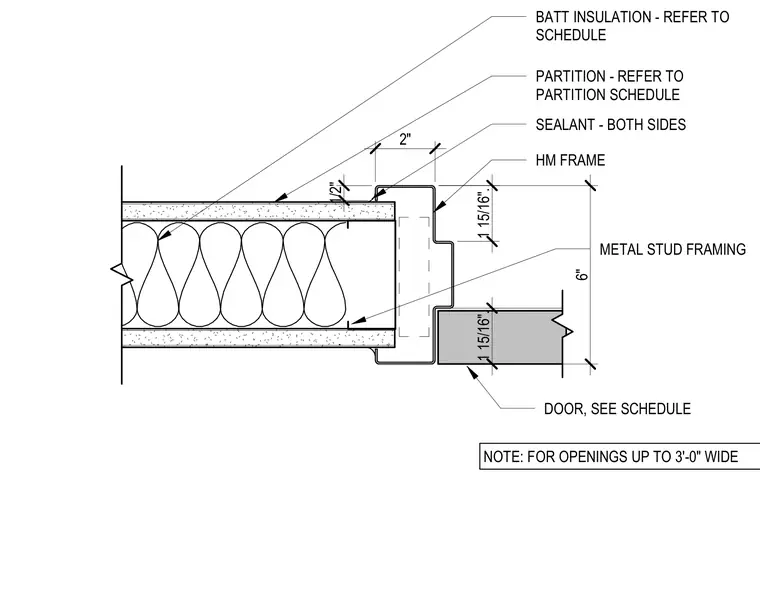

A hollow metal frame is installed within a metal stud framing partition with batt insulation. Sealant is applied on both sides at the joint between the hollow metal frame and the partition finish. A door per schedule meets the frame for openings up to three feet wide.
BATT INSULATION - REFER TO SCHEDULE PARTITION - REFER TO PARTITION SCHEDULE METAL STUD FRAMING SEALANT - BOTH SIDES HM FRAME DOOR, SEE SCHEDULE NOTE: FOR OPENINGS UP TO 3'-0" WIDE 2" 1/2" 1 15/16". 1 15/16". 6"
