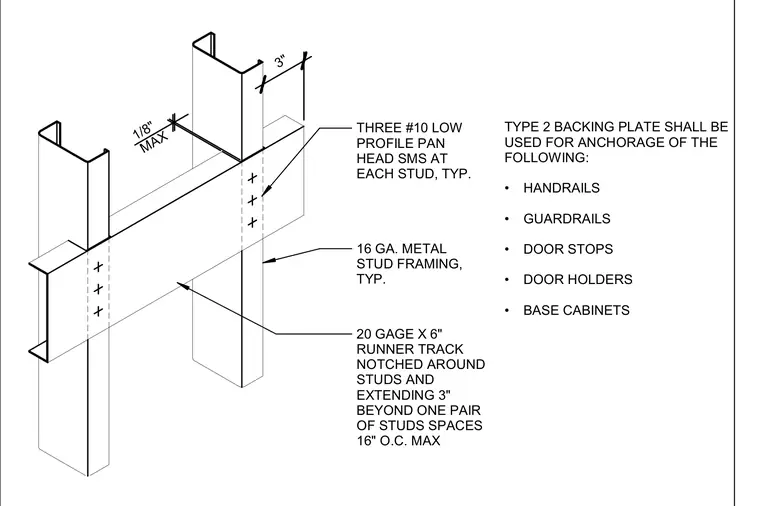

A cold-formed steel backing plate assembly for anchoring handrails, guardrails, door stops, door holders, and base cabinets to metal stud framing. A twenty gauge by six inch runner track is notched around sixteen gauge metal studs and extends three inches beyond one pair of studs spaced at a maximum of sixteen inches on center. Three number ten low profile pan head sheet metal screws secure each stud to the runner track with a maximum one-eighth inch clearance.
THREE #10 LOW PROFILE PAN HEAD SMS AT EACH STUD, TYP. 1/8" MAX 3" 16 GA. METAL STUD FRAMING, TYP. 20 GAGE X 6" RUNNER TRACK NOTCHED AROUND STUDS AND EXTENDING 3" BEYOND ONE PAIR OF STUDS SPACES 16" O.C. MAX TYPE 2 BACKING PLATE SHALL BE USED FOR ANCHORAGE OF THE FOLLOWING: • HANDRAILS • GUARDRAILS • DOOR STOPS • DOOR HOLDERS • BASE CABINETS
