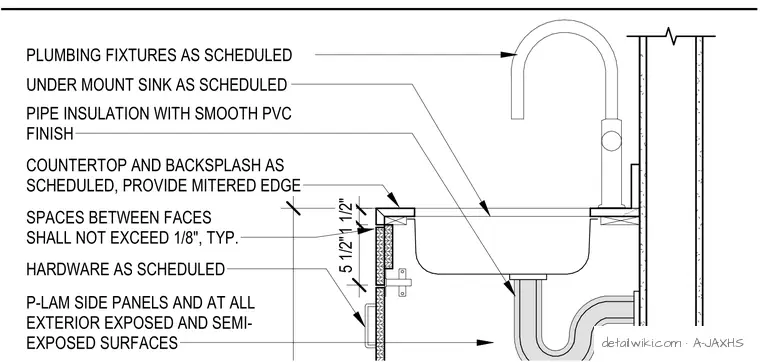

This assembly features an undermount sink integrated into a countertop with a mitered edge backsplash. The cabinet construction utilizes plastic laminate side panels on all exterior exposed and semi-exposed surfaces. Plumbing fixtures are installed per the project schedule, with pipe insulation featuring a smooth polyvinyl chloride finish provided for the drain assembly. A maximum gap of one-eighth inch is maintained between cabinet faces. Cabinet hardware is installed as specified in the project schedule.
