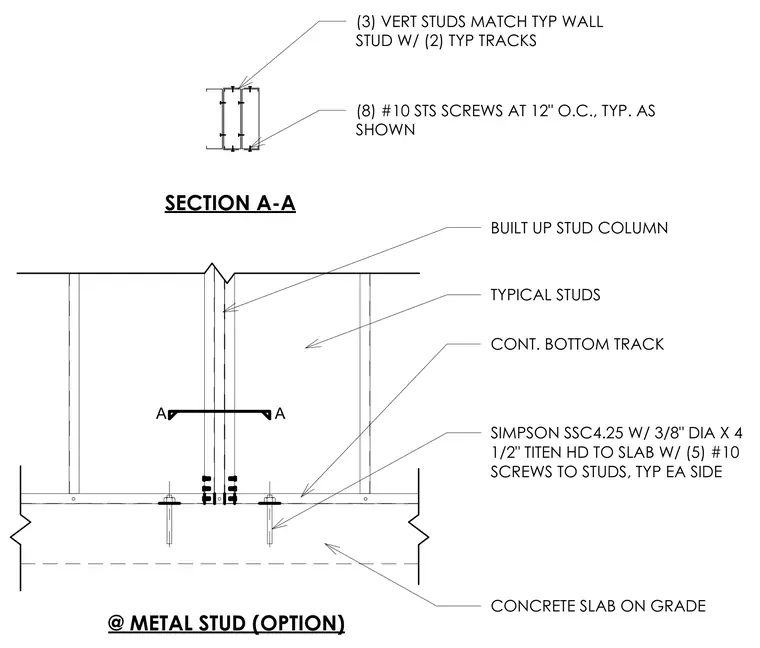

A built-up stud column is anchored to a concrete slab on grade using a continuous bottom track and Simpson SSC4.25 connectors fastened with 3/8-inch diameter by 4 1/2-inch Titen HD anchors to the slab. The column assembly incorporates three vertical studs matching typical wall studs flanked by two typical tracks, secured with eight number 10 self-tapping screws at 12 inches on center. Typical wall studs frame into the assembly continuously along each side above the continuous bottom track.
SECTION A-A BUILT UP STUD COLUMN TYPICAL STUDS CONT. BOTTOM TRACK SIMPSON SSC4.25 W/ 3/8" DIA X 4 1/2" TITEN HD TO SLAB W/ (5) #10 SCREWS TO STUDS, TYP EA SIDE CONCRETE SLAB ON GRADE A A @ METAL STUD (OPTION) (3) VERT STUDS MATCH TYP WALL STUD W/ (2) TYP TRACKS (8) #10 STS SCREWS AT 12" O.C., TYP. AS SHOWN
