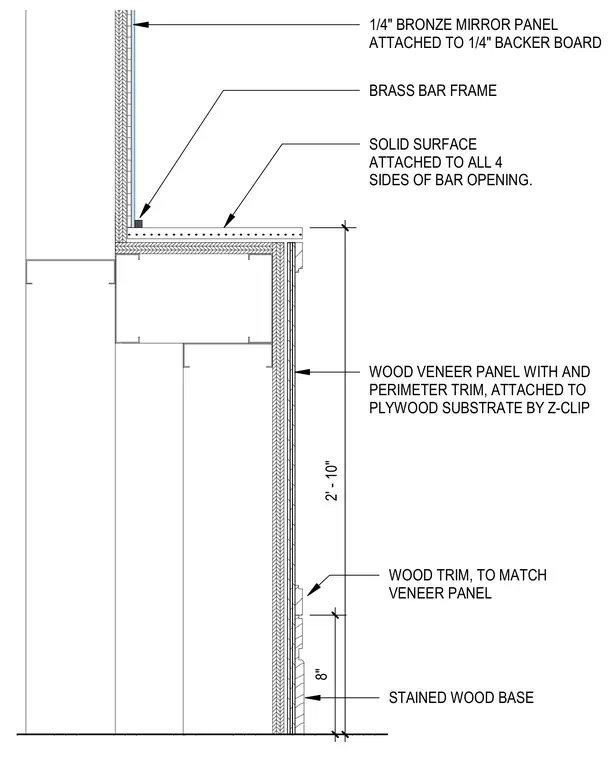

A solid surface countertop is attached to all four sides of the bar opening above a plywood substrate. A quarter-inch bronze mirror panel is mounted on a quarter-inch backer board with a brass bar frame. Wood veneer panels with perimeter trim are secured to the plywood substrate using Z-clips. A stained wood base with matching wood trim finishes the lower portion of the assembly.
SOLID SURFACE ATTACHED TO ALL 4 SIDES OF BAR OPENING. 1/4" BRONZE MIRROR PANEL ATTACHED TO 1/4" BACKER BOARD WOOD VENEER PANEL WITH AND PERIMETER TRIM, ATTACHED TO PLYWOOD SUBSTRATE BY Z-CLIP BRASS BAR FRAME 2' - 10" 8" STAINED WOOD BASE WOOD TRIM, TO MATCH VENEER PANEL
