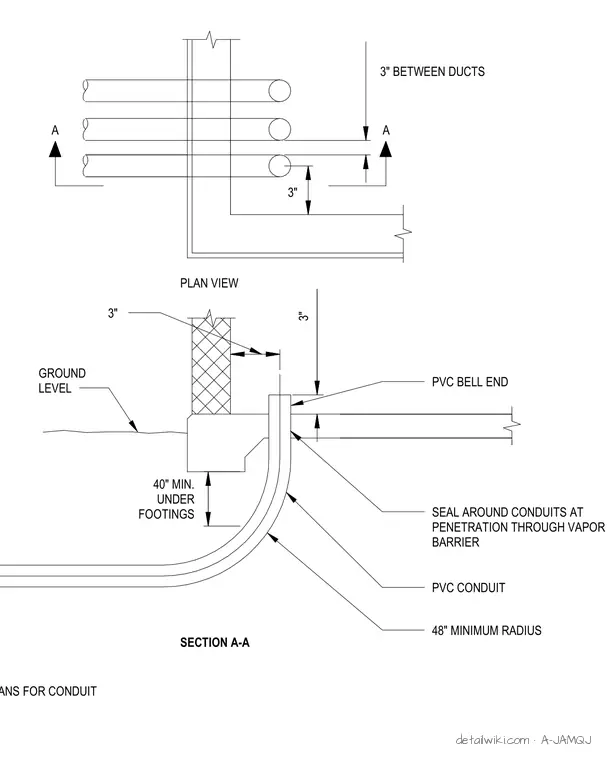

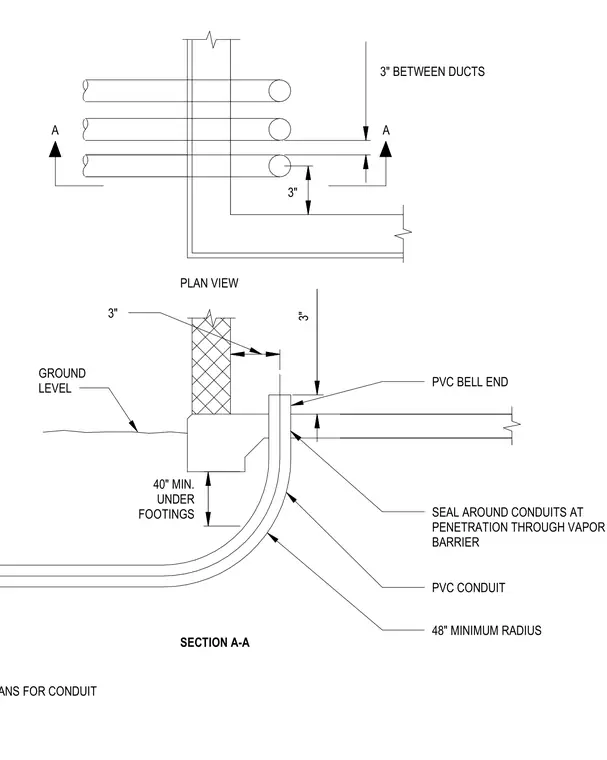

A-JAMQJ — Building Entrance Detail

Architectural · A-JAMQJ

Building Entrance Detail

Units: imperial
Sheet: RA-T2.1.2
Discipline: Architectural

Materials

Elements

Entrances Floors / Slabs Foundations / Footings Roof / Floor Openings Waterproofing / Flashing

Text on the drawing

SECTION A-A 48" MINIMUM RADIUS PVC CONDUIT SEAL AROUND CONDUITS AT PENETRATION THROUGH VAPOR BARRIER PVC BELL END GROUND LEVEL 3" 3" 40" MIN. UNDER FOOTINGS PLAN VIEW A A 3" BETWEEN DUCTS 3" 1. REFER TO SITE PLANS AND FLOOR PLANS FOR CONDUIT

Members view this detail in full resolution, download the CAD files (SVG, PDF), and open any detail in the built-in CAD editor to edit and export DXF or DWG.
