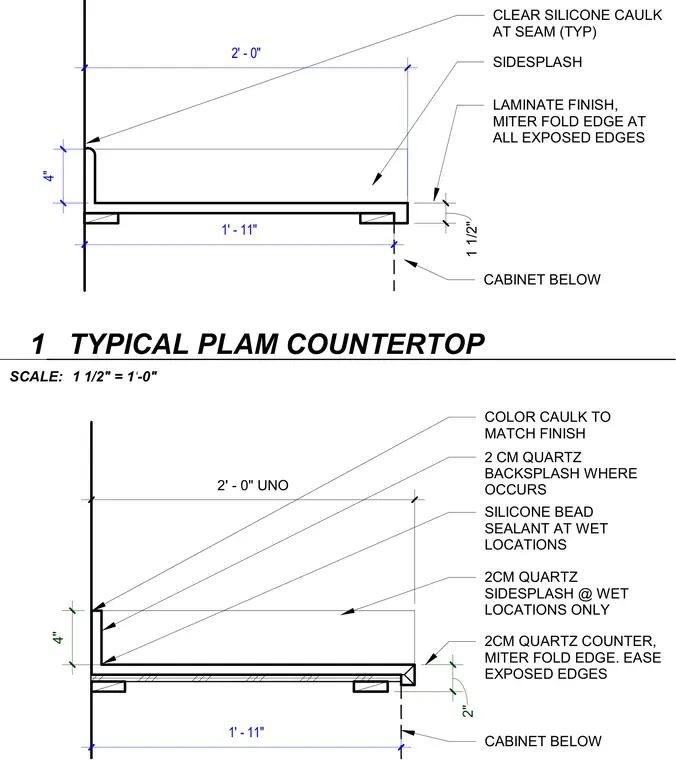

Two countertop installation details show standard profile conditions for plastic laminate and two-centimeter quartz surfaces supported by base cabinetry below. The assembly features a miter-folded edge with eased exposed corners and a four-inch vertical backsplash or sidesplash where required. Clear silicone caulk seals the wall seam typically, with color-matched caulk applied at finished joints and silicone bead sealant designated specifically for wet locations. Dimensions indicate a standard two-foot overall depth with an eleven-inch interior cabinet span.
LAMINATE FINISH, MITER FOLD EDGE AT ALL EXPOSED EDGES CABINET BELOW CLEAR SILICONE CAULK AT SEAM (TYP) 1 1/2" 2' - 0" SIDESPLASH 4" 1' - 11" 2" 2CM QUARTZ COUNTER, MITER FOLD EDGE. EASE EXPOSED EDGES 2 CM QUARTZ BACKSPLASH WHERE OCCURS CABINET BELOW COLOR CAULK TO MATCH FINISH SILICONE BEAD SEALANT AT WET LOCATIONS 4" 2' - 0" UNO 2CM QUARTZ SIDESPLASH @ WET LOCATIONS ONLY 1' - 11" SCALE: 1 1/2" = 1'-0" 1 TYPICAL PLAM COUNTERTOP
