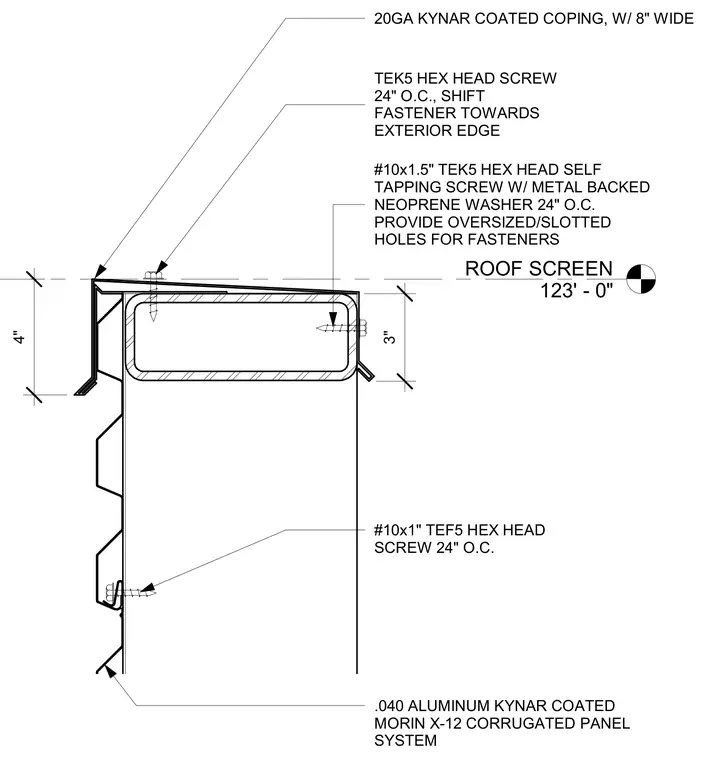

A twenty-gauge Kynar-coated coping tops the roof screen assembly, secured with number ten by one-and-one-half-inch self-tapping hex head screws spaced twenty-four inches on center with metal-backed neoprene washers and oversized or slotted fastener holes. The supporting structural framing receives a Tek five hex head screw shifted toward the exterior edge. An aluminum Kynar-coated corrugated panel system fastens below using number ten by one-inch self-tapping screws spaced twenty-four inches on center.
ROOF SCREEN 123' - 0" 4" 3" #10x1.5" TEK5 HEX HEAD SELF TAPPING SCREW W/ METAL BACKED NEOPRENE WASHER 24" O.C. PROVIDE OVERSIZED/SLOTTED HOLES FOR FASTENERS TEK5 HEX HEAD SCREW 24" O.C., SHIFT FASTENER TOWARDS EXTERIOR EDGE #10x1" TEF5 HEX HEAD SCREW 24" O.C. 20GA KYNAR COATED COPING, W/ 8" WIDE .040 ALUMINUM KYNAR COATED MORIN X-12 CORRUGATED PANEL SYSTEM
