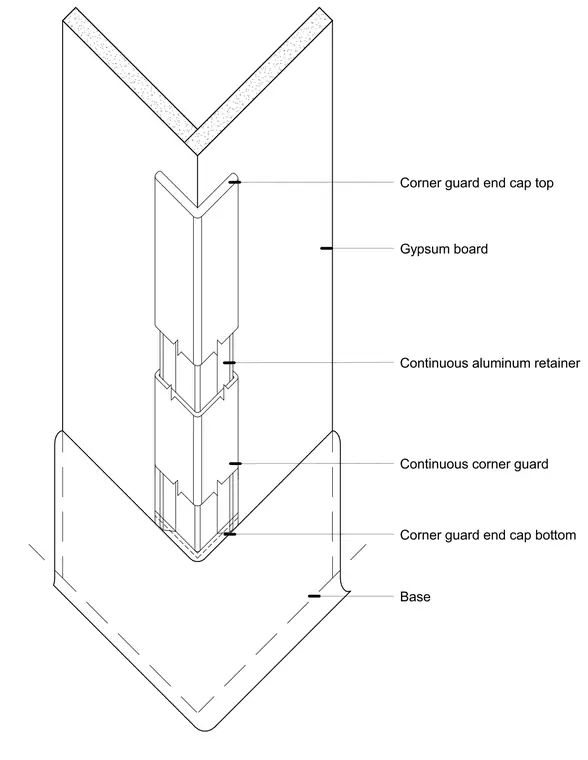

A continuous aluminum retainer is fastened to the outside corner of gypsum board wall partitions and secured beneath a continuous snap-on corner guard. The assembly is finished with a corner guard end cap at the top and a bottom end cap terminating near the wall base.
Corner guard end cap top Gypsum board Continuous aluminum retainer Continuous corner guard Corner guard end cap bottom Base
