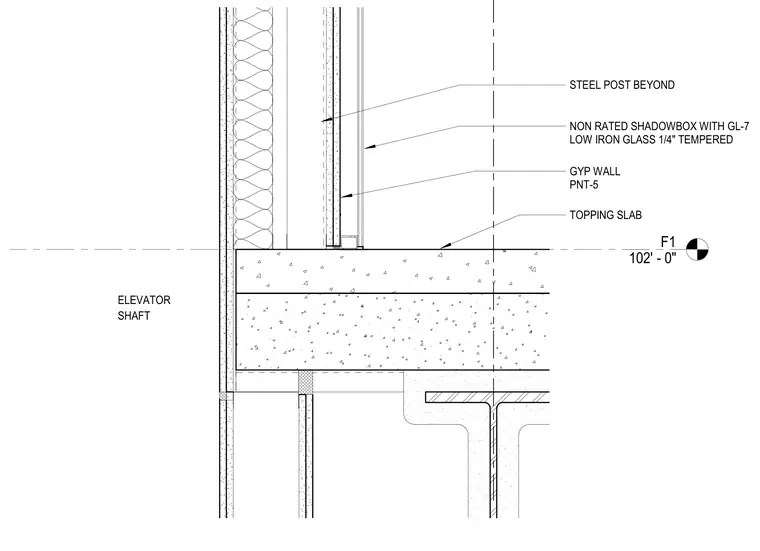

A non-rated shadowbox assembly with low-iron tempered glass meets a concrete topping slab and structural floor level at this wall and floor junction. A painted gypsum wall board partition backs the assembly, with a steel post positioned beyond the plane of the wall. The elevator shaft structure adjoins the floor slab edge opposite the exterior shadowbox condition.
F1 102' - 0" NON RATED SHADOWBOX WITH GL-7 LOW IRON GLASS 1/4" TEMPERED GYP WALL PNT-5 TOPPING SLAB STEEL POST BEYOND ELEVATOR SHAFT
