Architectural · A-J9WEY

Stair Handrail and Guardrail Extension at Bottom Landing

Materials

Elements

Walls Stairs Railings / Guards Floors / Slabs

About this detail

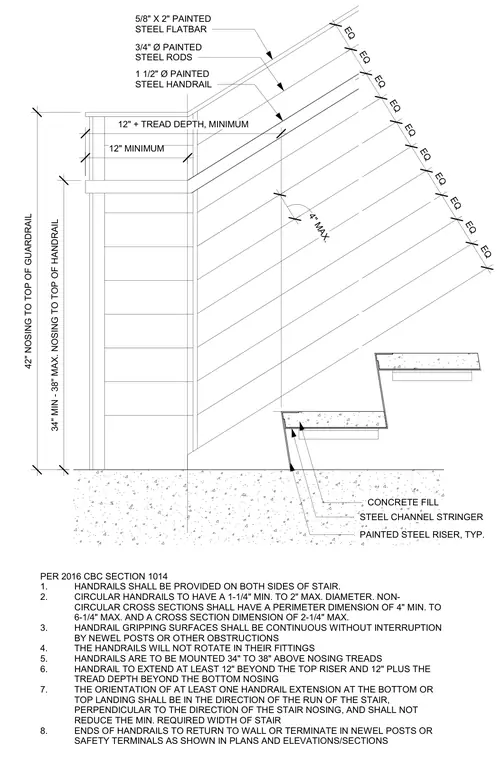

A steel stair assembly at the bottom landing features steel channel stringers and concrete fill treads with painted steel risers. A 1 1/2 inch diameter painted steel handrail is mounted 34 to 38 inches above the tread nosing, accompanied by a 42-inch high guardrail incorporating 3/4 inch diameter painted steel rods and a 5/8 by 2 inch painted steel flatbar. The handrail is detailed with required extensions including a minimum 12-inch extension plus the tread depth beyond the bottom nosing. Code compliance notes per 2016 CBC Section 1014 dictate handrail dimensions, gripping surfaces, continuity, and extension orientations.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
