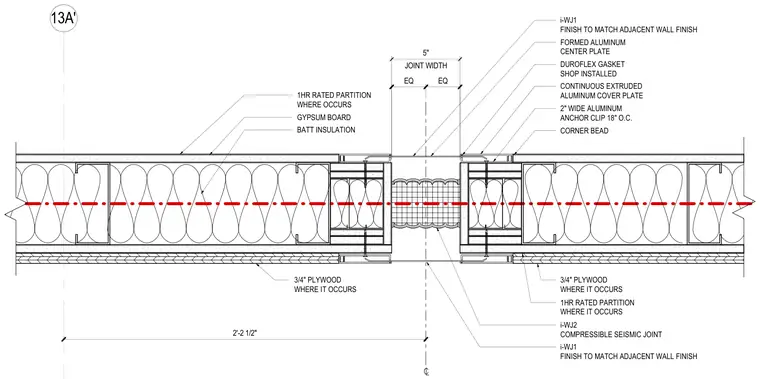

This interior wall expansion joint assembly spans a five-inch gap between two framed gypsum board partitions. A shop-installed Duroflex compressible seismic joint is centered within the opening, flanked by a formed aluminum center plate. Continuous extruded aluminum cover plates are secured to the partition framing using two-inch-wide aluminum anchor clips spaced at eighteen inches on center. The surrounding wall construction consists of metal studs filled with batt insulation, faced with gypsum board and three-quarter-inch plywood where specified, with corner beads finishing the adjacent wall surfaces at the joint interface. One-hour rated partition assemblies occur at the junction as required by the design.
13A' BATT INSULATION GYPSUM BOARD 1HR RATED PARTITION WHERE IT OCCURS 1HR RATED PARTITION WHERE OCCURS FORMED ALUMINUM CENTER PLATE 2" WIDE ALUMINUM ANCHOR CLIP 18" O.C. DUROFLEX GASKET SHOP INSTALLED i-WJ2 COMPRESSIBLE SEISMIC JOINT CONTINUOUS EXTRUDED ALUMINUM COVER PLATE CORNER BEAD i-WJ1 FINISH TO MATCH ADJACENT WALL FINISH i-WJ1 FINISH TO MATCH ADJACENT WALL FINISH JOINT WIDTH 5" 3/4" PLYWOOD WHERE IT OCCURS 3/4" PLYWOOD WHERE IT OCCURS 2'-2 1/2" EQ EQ
