Knee and Toe Clearances

About this detail

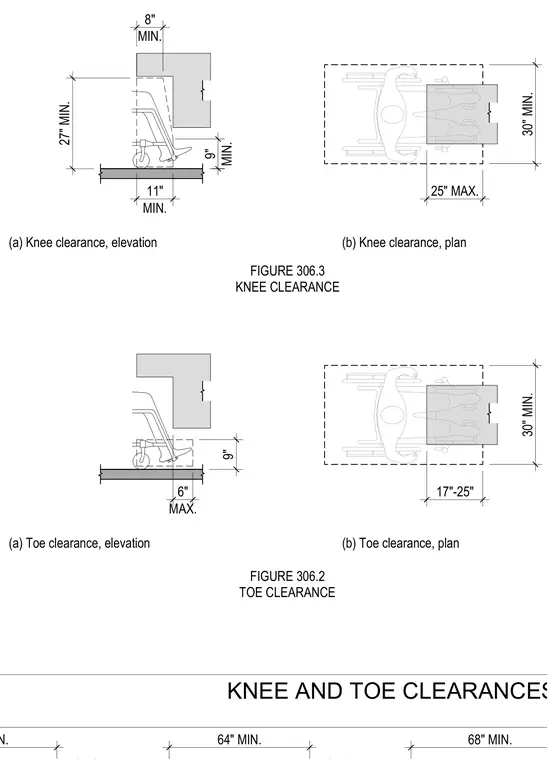

Accessible knee and toe clearance requirements show elevation and plan views for wheelchair users. Toe clearance elevation specifies a nine inch minimum height and a six inch maximum depth, with a thirty inch minimum width in plan. Knee clearance elevation provides a twenty-seven inch minimum height with an eight inch minimum depth at the top and eleven inch minimum depth at the bottom, extending up to twenty-five inches maximum depth at a nine inch height.
