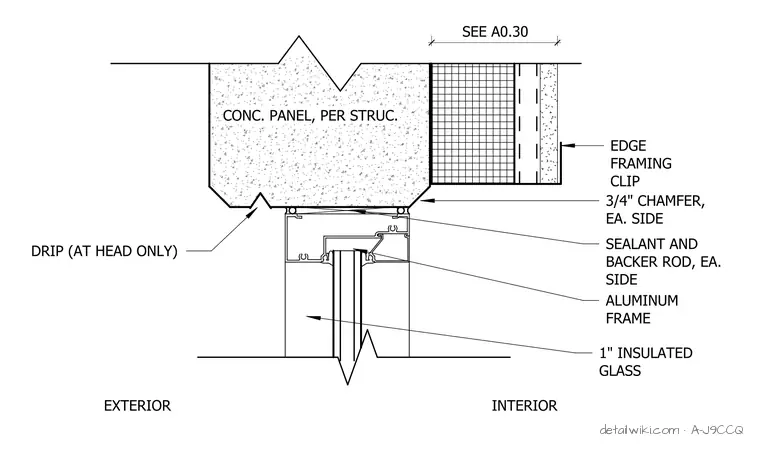

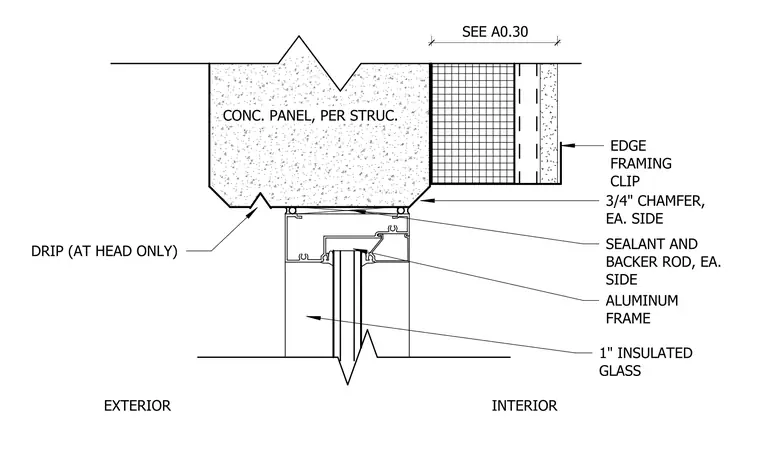

The aluminum storefront frame installs against a concrete panel sized per structural drawings. The concrete panel features a three-quarter-inch chamfer on each side and a drip edge at the head condition. The storefront frame, containing one-inch insulated glass, seals to the concrete panel on both the interior and exterior sides using sealant and a backer rod. An edge framing clip secures the assembly, with further framing details referenced on sheet A0.30.
Text on the drawing
ALUMINUM FRAME 1" INSULATED GLASS CONC. PANEL, PER STRUC. 3/4" CHAMFER, EA. SIDE SEALANT AND BACKER ROD, EA. SIDE EXTERIOR SEE A0.30 EDGE FRAMING CLIP INTERIOR DRIP (AT HEAD ONLY)
