Architectural · A-J97VQ

Wall-Mounted Nightstand Millwork Detail

Materials

Elements

Walls Partitions Floors / Slabs Millwork / Casework

About this detail

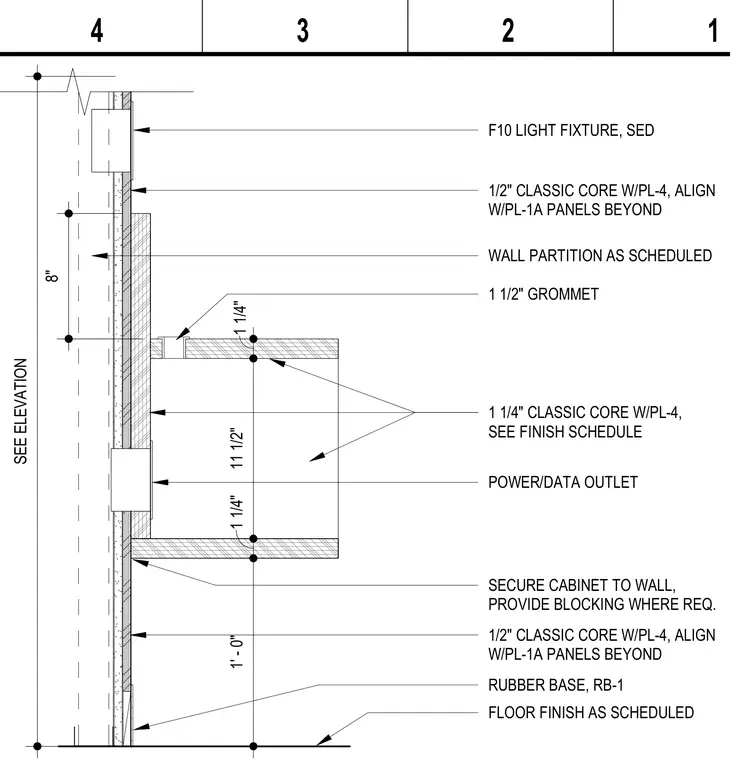

A wall-mounted nightstand constructed from one-and-one-quarter-inch classic core material with plastic laminate finish is secured to the wall partition with required blocking. The unit features a one-and-one-half-inch grommet, power and data outlets, and aligns with one-half-inch classic core wall panels finished with plastic laminate. A light fixture is integrated above the nightstand assembly on the partition wall. The base of the wall features a rubber base trim over the specified floor finish.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
