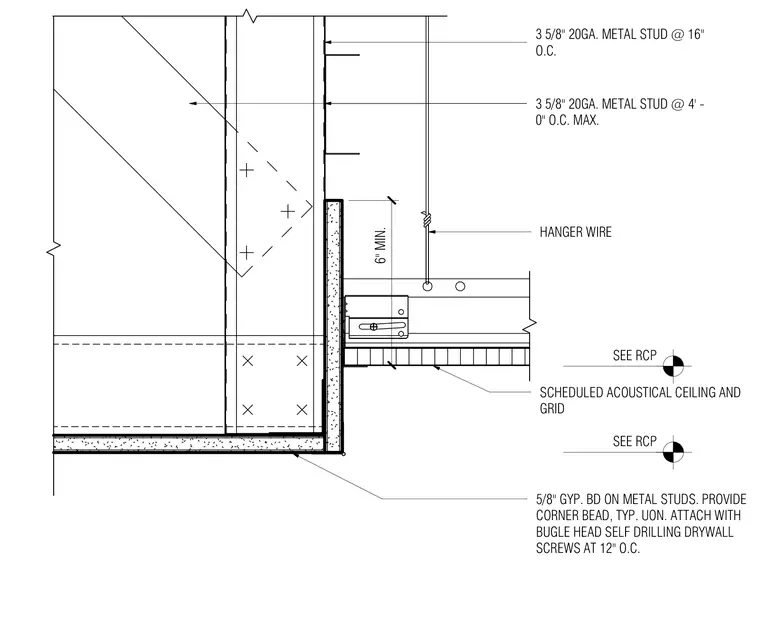

This wall and ceiling intersection consists of three-and-five-eighths-inch twenty-gauge metal studs spaced at sixteen inches on center alongside backup studs spaced at four feet on center maximum. Five-eighths-inch gypsum board is fastened to the metal studs using bugle head self-drilling drywall screws spaced at twelve inches on center with corner beads installed typically unless noted otherwise. A suspended acoustical ceiling grid is supported by a minimum six-inch hanger wire anchored above. The ceiling grid aligns with the partition assembly per the reflected ceiling plan.
SEE RCP SEE RCP 5/8" GYP. BD ON METAL STUDS. PROVIDE CORNER BEAD, TYP. UON. ATTACH WITH BUGLE HEAD SELF DRILLING DRYWALL SCREWS AT 12" O.C. SCHEDULED ACOUSTICAL CEILING AND GRID 6" MIN. HANGER WIRE 3 5/8" 20GA. METAL STUD @ 16" O.C. 3 5/8" 20GA. METAL STUD @ 4' - 0" O.C. MAX.
