A suspended ceiling hanger wire anchors to the underside of a concrete structural slab using a 3/8-inch diameter expansion anchor and a 1-1/2-inch by 1-1/2-inch by 12-gauge by 2-inch wide ceiling clip. The anchor requires a minimum 6-inch edge distance from the face of the beam, joist, or edge of the slab. The connection secures to a concrete soffit with a minimum width of 12 inches where applicable, maintaining a minimum clearance.

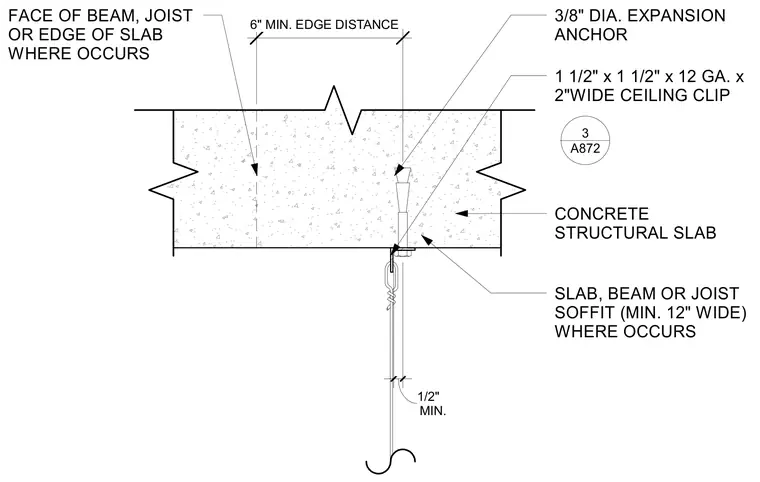

6" MIN. EDGE DISTANCE 3/8" DIA. EXPANSION ANCHOR CONCRETE STRUCTURAL SLAB FACE OF BEAM, JOIST OR EDGE OF SLAB WHERE OCCURS 1 1/2" x 1 1/2" x 12 GA. x 2"WIDE CEILING CLIP A872 3 MIN. 1/2" SLAB, BEAM OR JOIST SOFFIT (MIN. 12" WIDE) WHERE OCCURS
