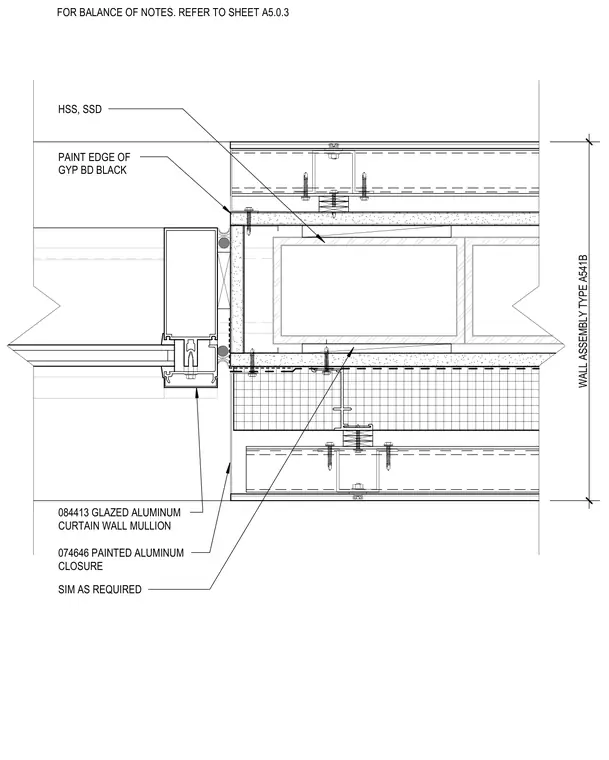

This plan detail shows the connection between a glazed aluminum curtain wall mullion and an adjacent wall assembly type A541B. The edge of the gypsum board is painted black to maintain concealment at the glazing joint. A painted aluminum closure interfaces between the curtain wall mullion and the structural hollow structural section backing. Fasteners and shim spaces are provided as required for alignment and attachment.
PAINT EDGE OF GYP BD BLACK 074646 PAINTED ALUMINUM CLOSURE WALL ASSEMBLY TYPE A541B 084413 GLAZED ALUMINUM CURTAIN WALL MULLION SIM AS REQUIRED HSS, SSD FOR BALANCE OF NOTES. REFER TO SHEET A5.0.3
