Roof drains and overflow drains are set into roof sheathing with rigid insulation and tapered insulation sloping toward the drains. A single-ply roof membrane runs over the rigid insulation and terminates at the drain assembly. A two-inch collar is provided at overflow drains only, separated from the standard roof drain by a minimum two-foot spacing.

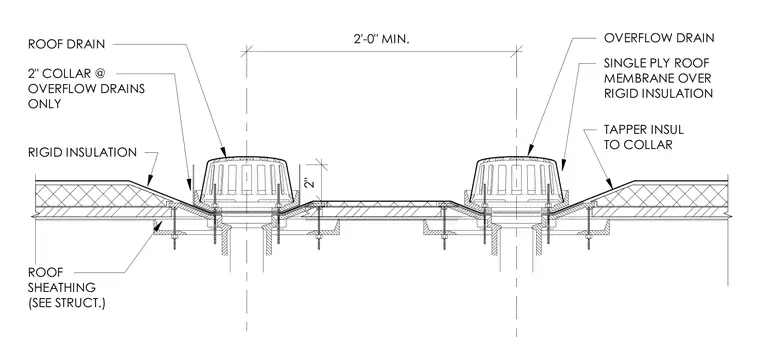

2'-0" MIN. 2" OVERFLOW DRAIN TAPPER INSUL TO COLLAR 2" COLLAR @ OVERFLOW DRAINS ONLY ROOF DRAIN RIGID INSULATION SINGLE PLY ROOF MEMBRANE OVER RIGID INSULATION ROOF SHEATHING (SEE STRUCT.)
