A recessed electrical box installed within a gypsum wall board partition includes a minimum one-inch clear space around the box filled with loose fiber batt insulation. Acoustical sealant is applied to full depth in one-quarter inch to one-half inch joints around the box perimeter. Open unused knockouts are capped, and a Hilti CP 617 putty pad covers the back of the electrical box to maintain the acoustic rating of the wall.

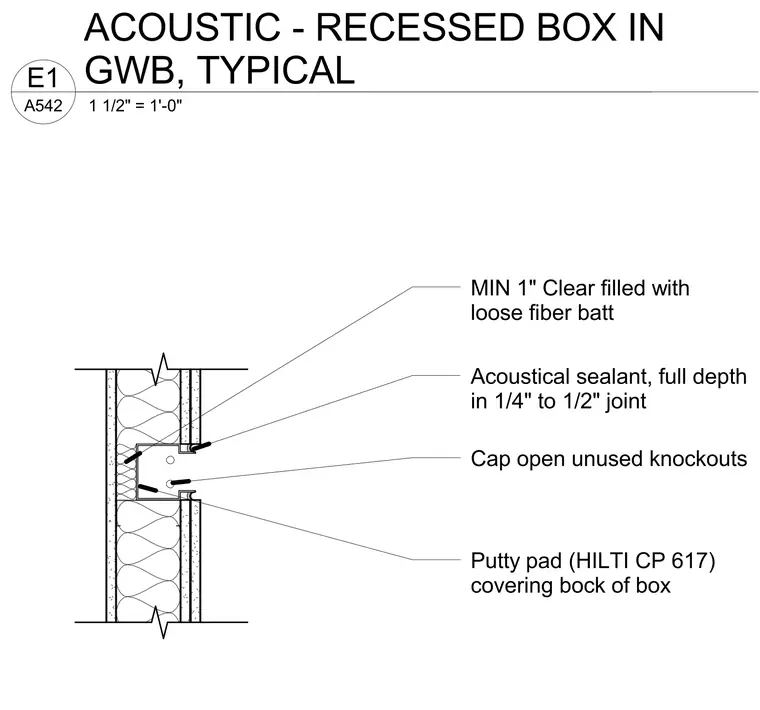

MIN 1" Clear filled with loose fiber batt Acoustical sealant, full depth in 1/4" to 1/2" joint Cap open unused knockouts Putty pad (HILTI CP 617) covering bock of box 1 1/2" = 1'-0" A542 E1 ACOUSTIC - RECESSED BOX IN GWB, TYPICAL
