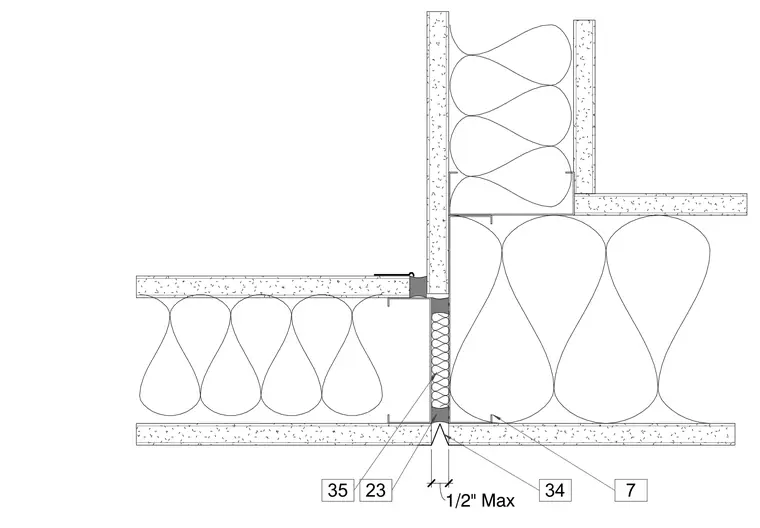

A control joint at a wall intersection incorporates intersecting metal stud framing, gypsum board layers, and batt insulation. A joint sealant with a maximum one-half inch width accommodates movement at the junction. Specific material layers and components are keyed with numbers thirty-four, thirty-five, twenty-three, and seven.
