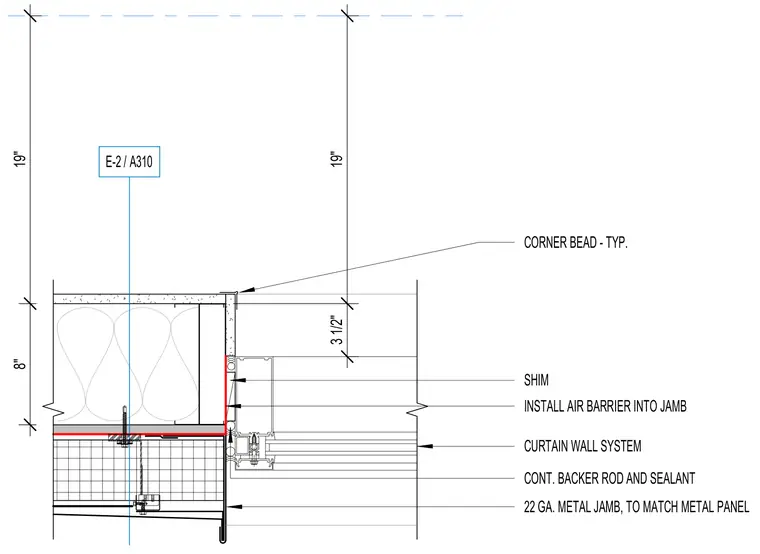

A twenty-two gauge metal jamb matches the metal panel curtain wall system with shims and a typical corner bead. An air barrier is installed continuously into the jamb. A continuous backer rod and sealant seal the joint between the framing and the curtain wall system.
E-2 / A310 22 GA. METAL JAMB, TO MATCH METAL PANEL CURTAIN WALL SYSTEM SHIM CORNER BEAD - TYP. INSTALL AIR BARRIER INTO JAMB 8" 19" 3 1/2" 19" CONT. BACKER ROD AND SEALANT
