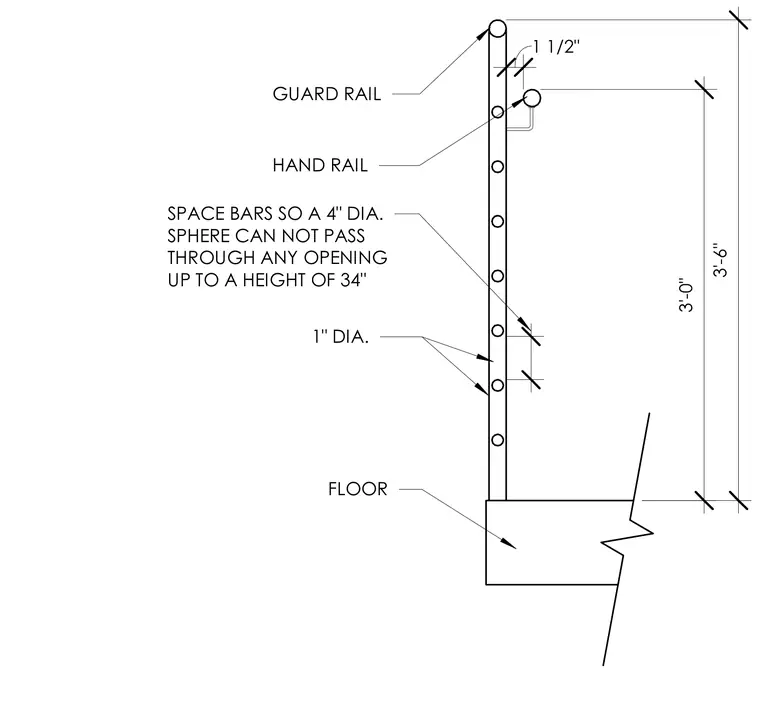

A guardrail assembly anchored to a floor slab rises to a height of three feet, six inches with an integrated handrail positioned at three feet. One-inch diameter horizontal space bars are arranged so that a four-inch diameter sphere cannot pass through any opening up to a height of thirty-four inches. The top guardrail element maintains a one-and-a-half-inch spacing from intermediate components.
FLOOR HAND RAIL GUARD RAIL SPACE BARS SO A 4" DIA. SPHERE CAN NOT PASS THROUGH ANY OPENING UP TO A HEIGHT OF 34" 3'-0" 3'-6" 1" DIA. 1 1/2"
