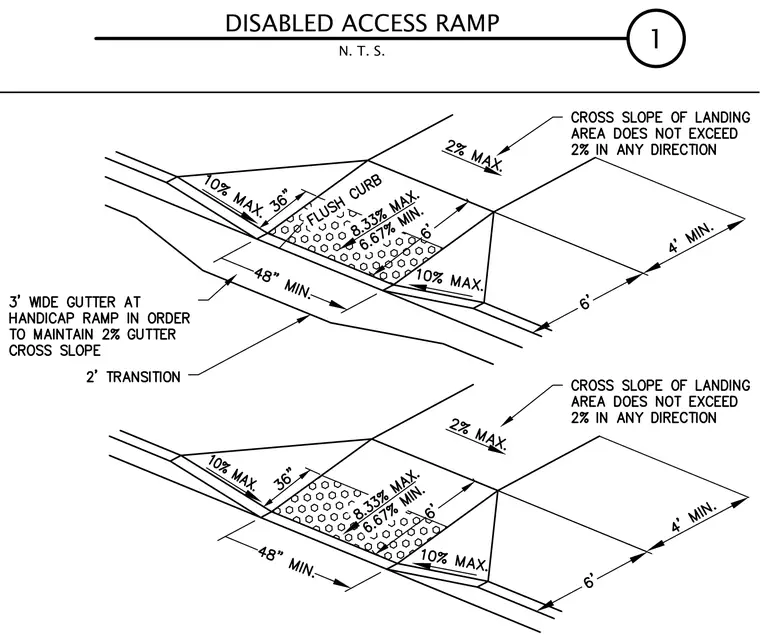

An accessible ramp configuration features a running slope ranging from six point sixty-seven percent minimum to eight point thirty-three percent maximum, flanked by flared side slopes limited to ten percent maximum. The landing area maintains a maximum cross slope of two percent in any direction with a minimum length of four feet. A three-foot-wide gutter is positioned adjacent to the ramp to maintain the two percent gutter cross slope across a two-foot transition. A flush curb bordered by a thirty-inch textured zone bounds the ramp configuration.
N. T. S. 1 DISABLED ACCESS RAMP
