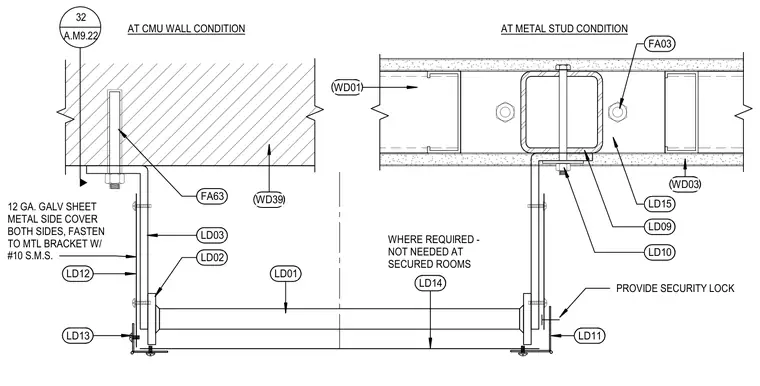

A typical ladder installation with a security cover occurs at both a concrete masonry unit wall condition and a metal stud wall condition. The ladder rungs and side brackets are secured using metal brackets fastened with sheet metal screws. Twelve-gauge galvanized sheet metal side covers are attached to the metal brackets on both sides to enclose the ladder. A security lock is provided where required and omitted at secured rooms.
12 GA. GALV SHEET METAL SIDE COVER BOTH SIDES, FASTEN TO MTL BRACKET W/ #10 S.M.S. LD12 LD13 LD14 LD11 LD02 LD03 LD01 LD09 AT CMU WALL CONDITION AT METAL STUD CONDITION LD10 WD39 FA63 LD15 WD03 WD01 32 A.M9.22 FA03 PROVIDE SECURITY LOCK WHERE REQUIRED - NOT NEEDED AT SECURED ROOMS
