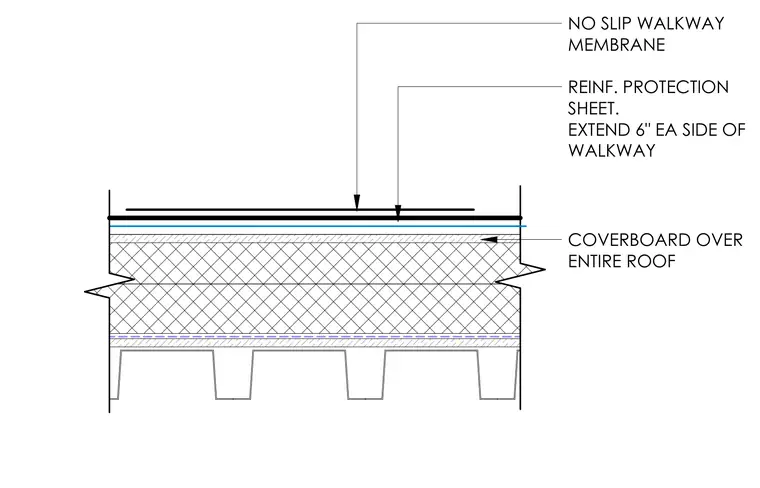

A no-slip walkway membrane is installed directly over a reinforced protection sheet that extends six inches on each side of the walkway. A coverboard is positioned continuously over the entire roof assembly below the protection sheet.
REINF. PROTECTION SHEET. EXTEND 6" EA SIDE OF WALKWAY NO SLIP WALKWAY MEMBRANE COVERBOARD OVER ENTIRE ROOF
