Architectural · A-J7DES

Elevator Pit Footing Waterproofing Detail

Elements

Foundations / Footings Waterproofing / Flashing Drainage

About this detail

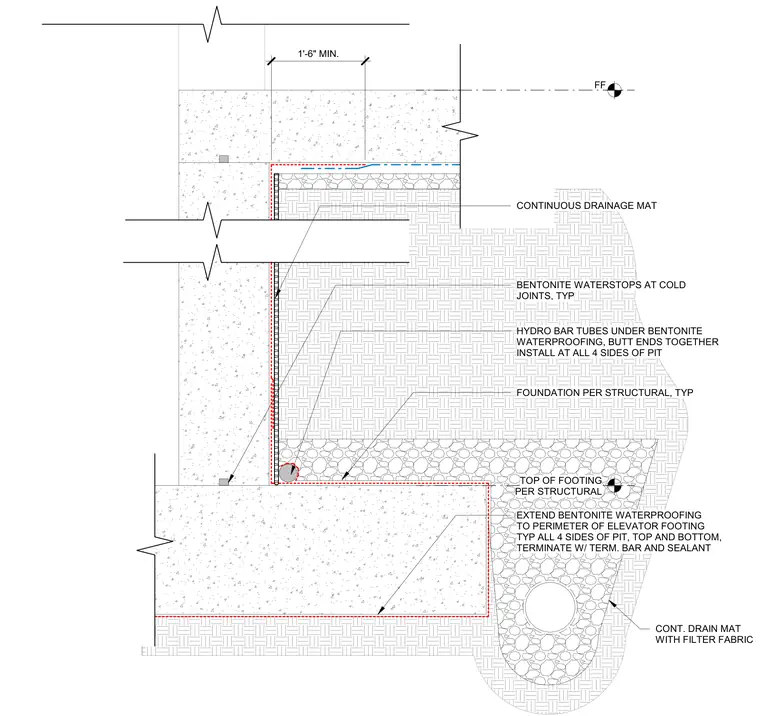

This elevator pit footing detail shows the foundation and waterproofing assembly resting on structural concrete. Bentonite waterproofing extends continuously along the perimeter of the elevator footing on all four sides, top and bottom, and is terminated with a termination bar and sealant. Hydro bar tubes are installed under the bentonite waterproofing with butt ends together at all four sides of the pit. Cold joints are sealed with bentonite waterstops, and a continuous drainage mat with filter fabric is installed adjacent to the perimeter.
