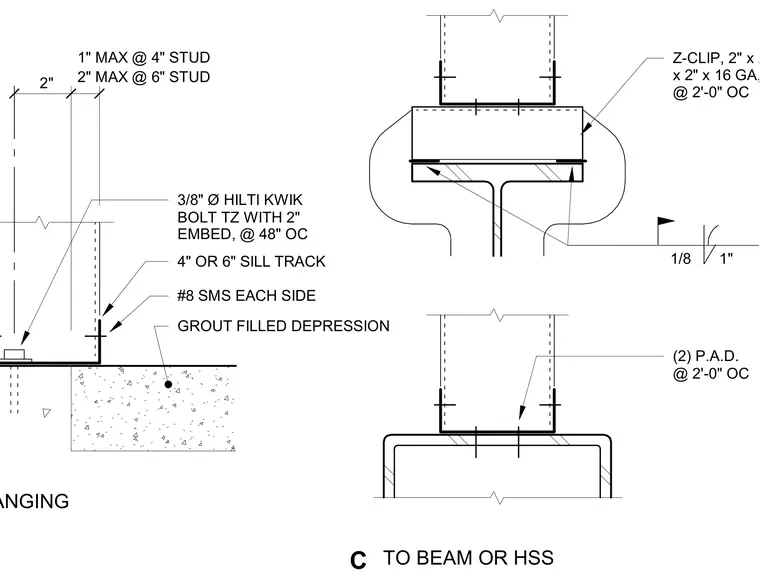

A four-inch or six-inch sill track bears on a grout-filled concrete depression and is secured with three-eighths-inch diameter Hilti KwiK Bolt TZ anchors featuring a two-inch embedment spaced at forty-eight inches on center, supplemented by number eight sheet metal screws on each side. Alternate conditions show the track connecting to a steel beam or hollow structural section using sixteenth-gauge Z-clips measuring two by two by two inches spaced at twenty-four inches on center, along with two pads spaced at twenty-four inches on center.
4" OR 6" SILL TRACK 3/8" Ø HILTI KWIK BOLT TZ WITH 2" EMBED, @ 48" OC #8 SMS EACH SIDE GROUT FILLED DEPRESSION 2" 2" MAX @ 6" STUD (2) P.A.D. @ 2'-0" OC Z-CLIP, 2" x 2" x 2" x 16 GA, @ 2'-0" OC 1/8 1" 1" MAX @ 4" STUD OVERHANGING TO BEAM OR HSS C
