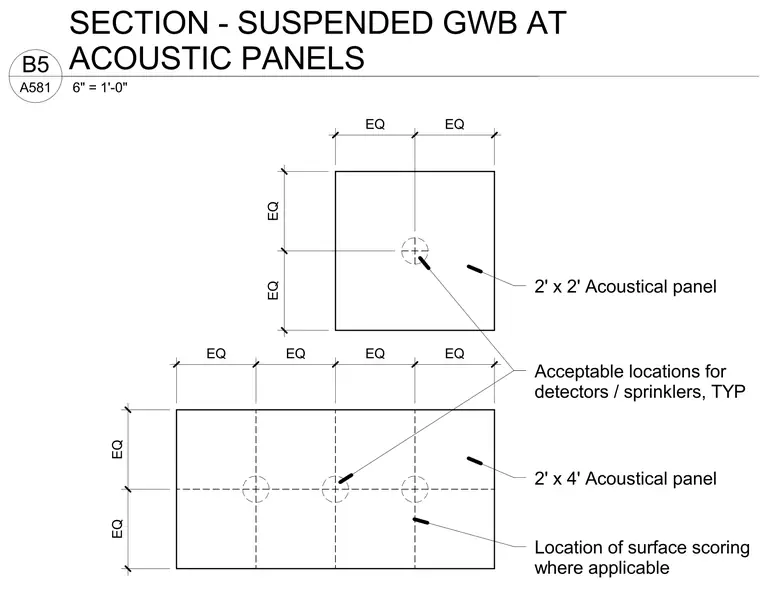

Suspended gypsum wallboard ceilings intersect with acoustical panels. A 2'-0" x 2'-0" acoustical panel module operates alongside a 2'-0" x 4'-0" acoustical panel module, both dimensioned with equal spacing intervals. Callouts indicate acceptable locations for detectors and sprinklers typically, as well as the location of surface scoring where applicable.
Location of surface scoring where applicable 2' x 4' Acoustical panel Acceptable locations for detectors / sprinklers, TYP EQ EQ EQ EQ EQ EQ EQ EQ EQ EQ 2' x 2' Acoustical panel 6" = 1'-0" A581 B5 SECTION - SUSPENDED GWB AT ACOUSTIC PANELS
