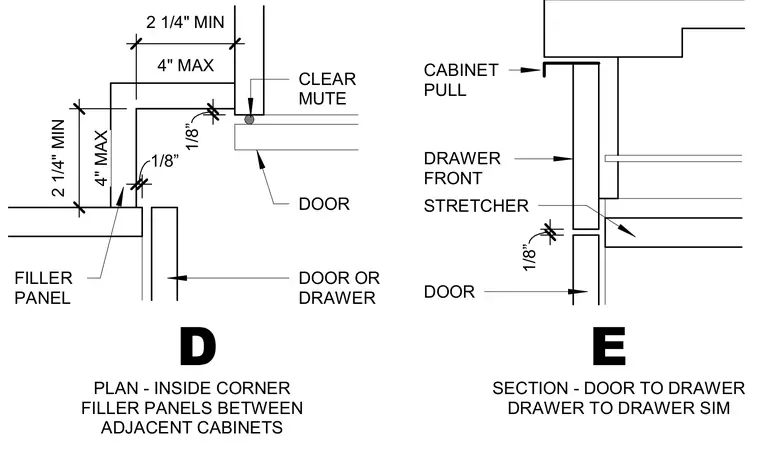

Millwork details depict an inside corner filler panel arrangement between adjacent cabinets with a four-inch maximum and two-and-one-quarter-inch minimum dimension, maintaining a one-eighth-inch joint. A vertical section shows the relationship between a cabinet pull, drawer front, stretcher, and door with a one-eighth-inch clearance gap and a door mute.
PLAN - INSIDE CORNER FILLER PANELS BETWEEN ADJACENT CABINETS D 4" MAX 2 1/4" MIN 4" MAX 2 1/4" MIN 1/8” DOOR DOOR OR DRAWER FILLER PANEL 1/8” CABINET PULL DRAWER FRONT DOOR STRETCHER SECTION - DOOR TO DRAWER DRAWER TO DRAWER SIM E 1/8” CLEAR MUTE
