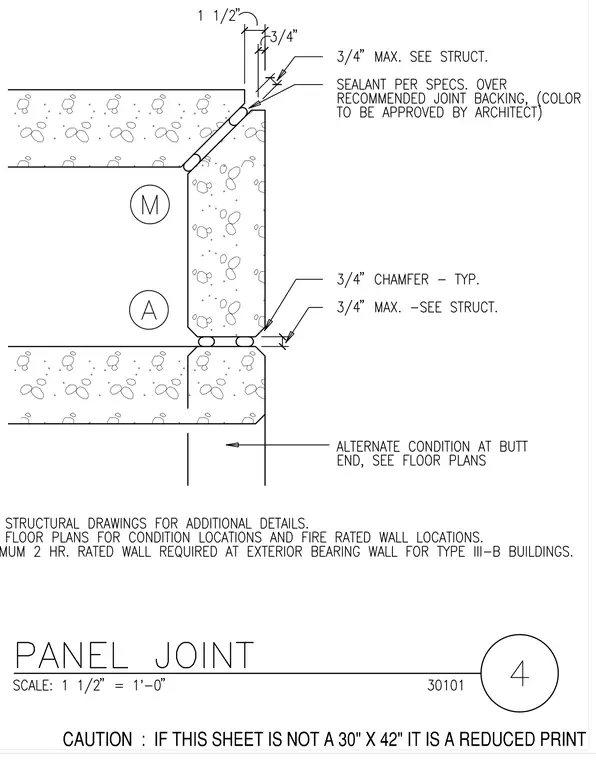

This architectural detail shows a precast concrete wall panel joint incorporating sealant over a recommended joint backing, with sealant color subject to architect approval. The concrete panels feature three-quarter-inch typical chamfered edges and a maximum three-quarter-inch joint gap dimensioned per structural drawings. An alternate condition at butt ends is referenced to the floor plans. Additional notes specify referencing structural drawings for details and floor plans for fire-rated wall locations.
