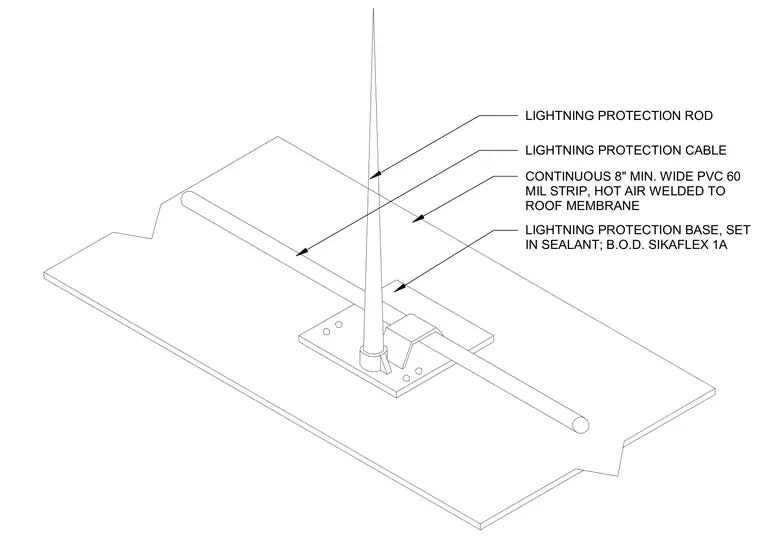

A lightning protection rod mounts onto a lightning protection base set in sealant over the roof membrane, using Sikaflex 1A. A continuous eight-inch-minimum-wide PVC sixty-mil strip hot-air welds directly to the roof membrane adjacent to the mounting base. A lightning protection cable secures through the base assembly.
LIGHTNING PROTECTION ROD LIGHTNING PROTECTION CABLE LIGHTNING PROTECTION BASE, SET IN SEALANT; B.O.D. SIKAFLEX 1A CONTINUOUS 8" MIN. WIDE PVC 60 MIL STRIP, HOT AIR WELDED TO ROOF MEMBRANE
