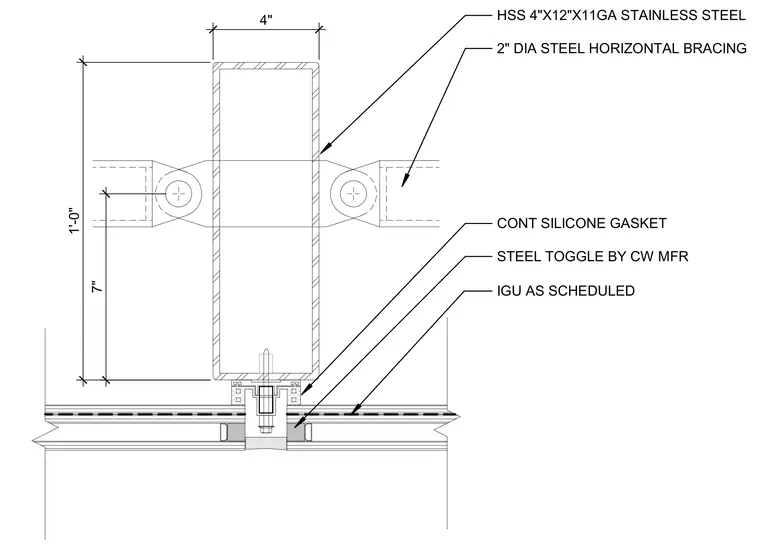

An insulating glass unit as scheduled meets a stainless steel 4-inch by 12-inch by 11-gauge hollow structural section mullion with a continuous silicone gasket. A steel toggle by the curtain wall manufacturer secures the assembly at the vertical joint. Two-inch diameter steel horizontal bracing connects to the structural mullion with pinned connections spaced 1 foot vertically.
2" DIA STEEL HORIZONTAL BRACING 4" 1'-0" 7" HSS 4"X12"X11GA STAINLESS STEEL IGU AS SCHEDULED CONT SILICONE GASKET STEEL TOGGLE BY CW MFR
