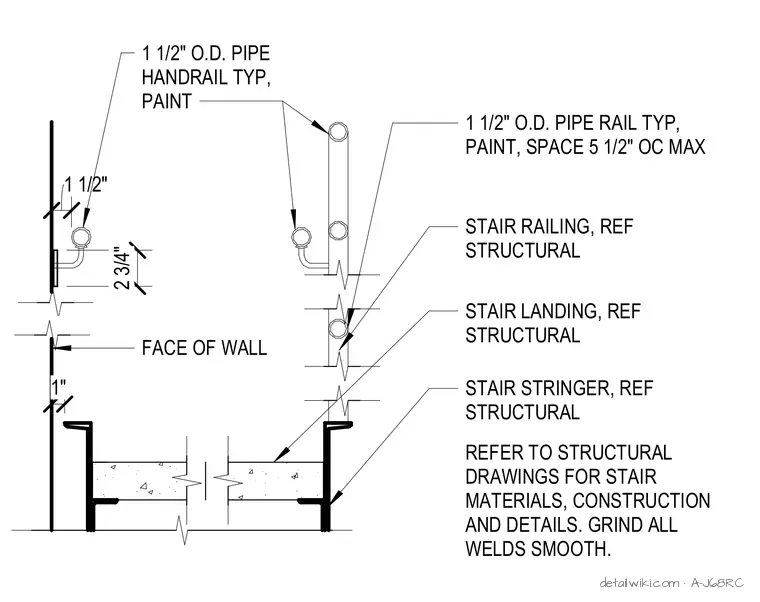

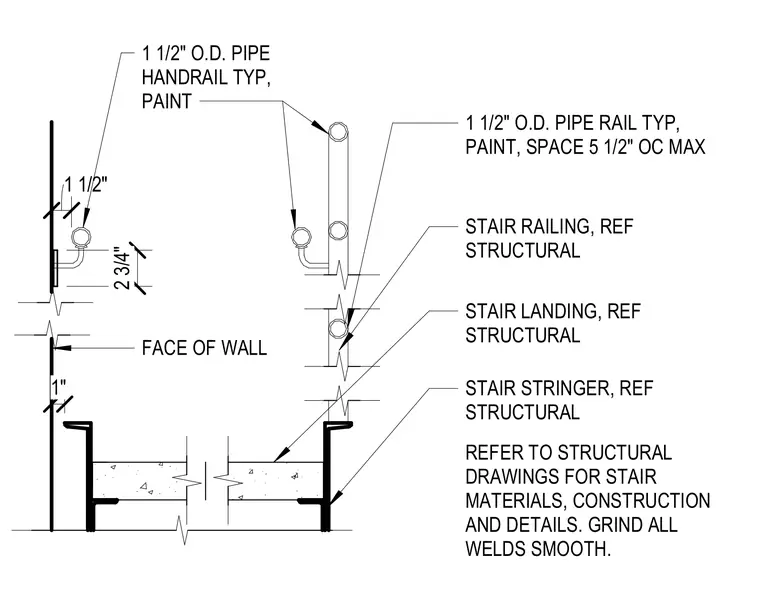

This assembly features a one and one-half inch outside diameter pipe handrail mounted to the face of the wall with a two and three-quarter inch offset. The stair railing consists of one and one-half inch outside diameter pipe rails spaced at a maximum of five and one-half inches on center. The stair railing, landing, and stringer are referenced to the structural drawings for materials and construction. All welds are to be ground smooth and the metal components are to be painted.
Text on the drawing
1 1/2" 2 3/4" 1" FACE OF WALL 1 1/2" O.D. PIPE HANDRAIL TYP, PAINT 1 1/2" O.D. PIPE RAIL TYP, PAINT, SPACE 5 1/2" OC MAX STAIR RAILING, REF STRUCTURAL STAIR LANDING, REF STRUCTURAL STAIR STRINGER, REF STRUCTURAL REFER TO STRUCTURAL DRAWINGS FOR STAIR MATERIALS, CONSTRUCTION AND DETAILS. GRIND ALL WELDS SMOOTH.
