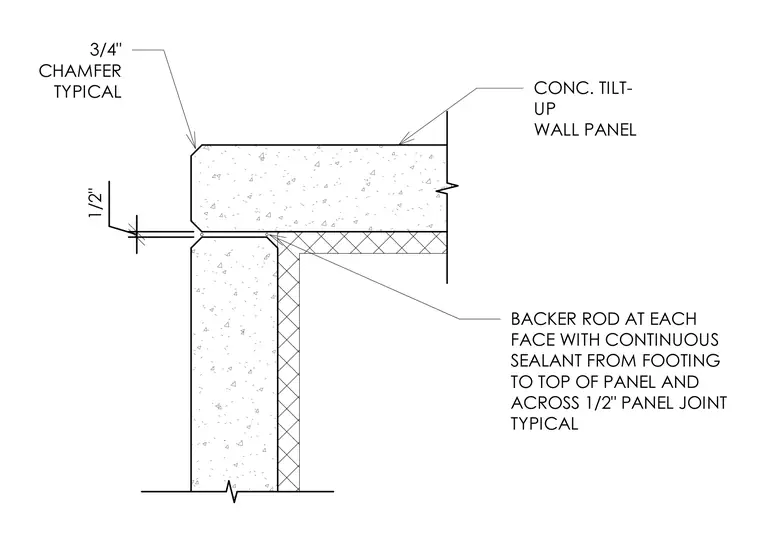

Adjacent concrete tilt-up wall panels form an exterior building corner with a half-inch vertical joint. A backer rod is installed at each face of the panel joint, backed by a continuous bead of sealant running from the footing to the top of the panel and across the joint. Both exterior intersecting panel edges feature a three-quarter-inch typical chamfer.
CONC. TILT- UP WALL PANEL BACKER ROD AT EACH FACE WITH CONTINUOUS SEALANT FROM FOOTING TO TOP OF PANEL AND ACROSS 1/2" PANEL JOINT TYPICAL 1/2" 3/4" CHAMFER TYPICAL
