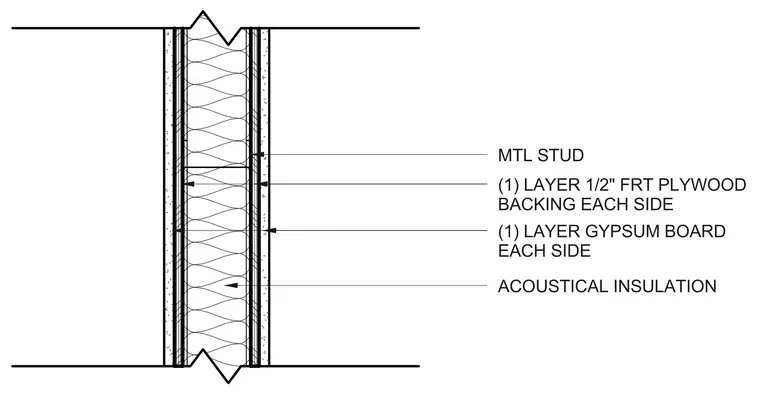

This non-rated acoustical partition consists of metal studs framing a cavity filled with acoustical insulation. Each side of the partition is finished with one layer of one-half-inch fire-retardant treated plywood backing adjacent to the studs, faced with one layer of gypsum board.
ACOUSTICAL INSULATION MTL STUD (1) LAYER 1/2" FRT PLYWOOD BACKING EACH SIDE (1) LAYER GYPSUM BOARD EACH SIDE
