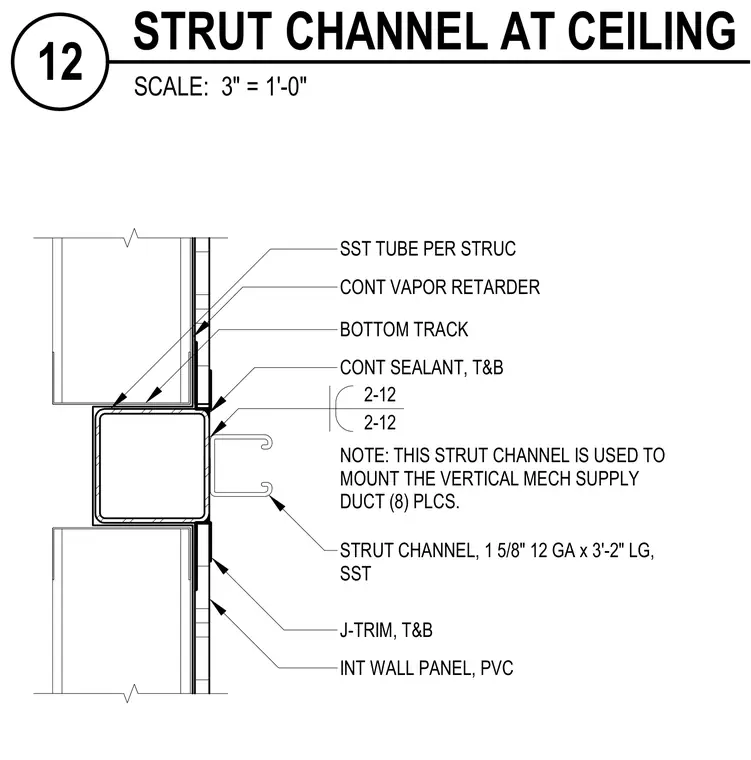

A stainless steel strut channel measuring one and five-eighths inches by twelve gauge by three feet two inches long mounts against stainless steel structural tubes and PVC interior wall panels. A continuous vapor retarder and bottom track integrate with continuous sealant along top and bottom edges. J-trim finishes the wall panel edges adjacent to the assembly. This strut channel supports the vertical mechanical supply duct in eight locations.
STRUT CHANNEL, 1 5/8" 12 GA x 3'-2" LG, SST INT WALL PANEL, PVC CONT VAPOR RETARDER BOTTOM TRACK CONT SEALANT, T&B J-TRIM, T&B SST TUBE PER STRUC 2-12 2-12 NOTE: THIS STRUT CHANNEL IS USED TO MOUNT THE VERTICAL MECH SUPPLY DUCT (8) PLCS. SCALE: 3" = 1'-0" 12 STRUT CHANNEL AT CEILING
