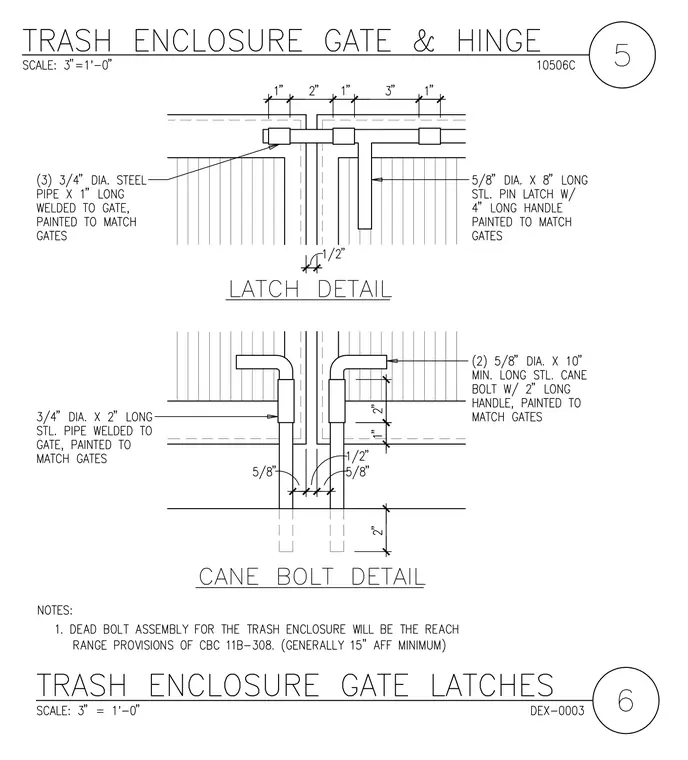

Latch and cane bolt mechanisms for a trash enclosure gate consist of three three-quarter-inch diameter steel pipes one inch long welded to the gate and painted to match, paired with a five-eighth-inch diameter by eight-inch long steel pin latch with a four-inch long handle. The cane bolt assembly features two five-eighth-inch diameter by ten-inch minimum long steel cane bolts with two-inch long handles and three-quarter-inch diameter by two-inch long steel pipes welded to the gate. A note specifies that the dead bolt assembly for the trash enclosure will be the reach range provisions of CBC 11B-308.
