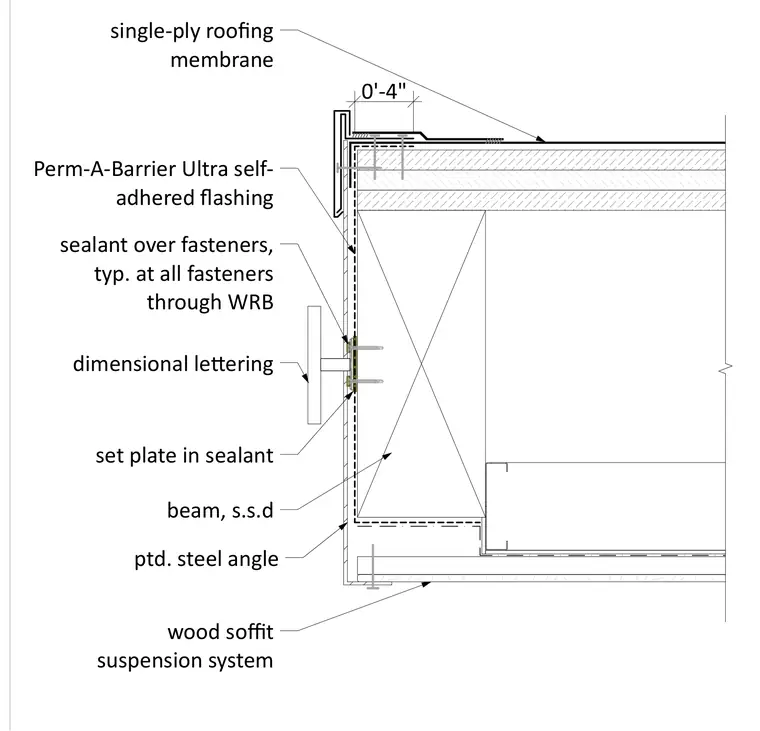

Dimensional lettering connects to a fascia assembly with a structural beam and wood soffit suspension system. A painted steel angle supports the edge condition, wrapped with Perm-A-Barrier Ultra self-adhered flashing beneath a single-ply roofing membrane. The lettering is mounted on a base plate set in sealant, with sealant applied over all fasteners penetrating the water-resistive barrier.
0'-4" dimensional le Ʃering Perm-A-Barrier Ultra self- adhered flashing beam, s.s.d ptd. steel angle wood soffit suspension system single-ply roofing membrane sealant over fasteners, typ. at all fasteners through WRB set plate in sealant
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
