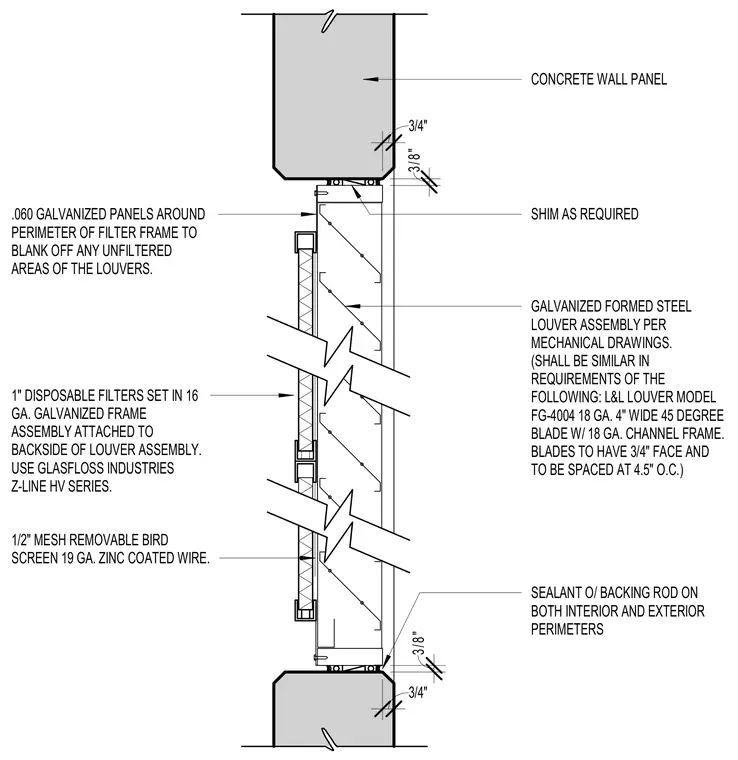

A galvanized formed steel louver assembly is set within an opening in a concrete wall panel and bedded with shims as required. Sealant over a backing rod seals both the interior and exterior perimeters of the louver frame. A one-inch disposable filter is set inside a sixteen-gauge galvanized frame assembly attached to the backside of the louver, accompanied by zero-point-zero-sixty galvanized blank-off panels around the perimeter to seal unfiltered areas. A one-half-inch mesh removable bird screen constructed of nineteen-gauge zinc-coated wire is mounted on the exterior side.
CONCRETE WALL PANEL SHIM AS REQUIRED GALVANIZED FORMED STEEL LOUVER ASSEMBLY PER MECHANICAL DRAWINGS. (SHALL BE SIMILAR IN REQUIREMENTS OF THE FOLLOWING: L&L LOUVER MODEL FG-4004 18 GA. 4" WIDE 45 DEGREE BLADE W/ 18 GA. CHANNEL FRAME. BLADES TO HAVE 3/4" FACE AND TO BE SPACED AT 4.5" O.C.) SEALANT O/ BACKING ROD ON BOTH INTERIOR AND EXTERIOR PERIMETERS .060 GALVANIZED PANELS AROUND PERIMETER OF FILTER FRAME TO BLANK OFF ANY UNFILTERED AREAS OF THE LOUVERS. 1" DISPOSABLE FILTERS SET IN 16 GA. GALVANIZED FRAME ASSEMBLY ATTACHED TO BACKSIDE OF LOUVER ASSEMBLY. USE GLASFLOSS INDUSTRIES Z-LINE HV SERIES. 1/2" MESH REMOVABLE BIRD SCREEN 19 GA. ZINC COATED WIRE. 3/8" 3/4" 3/4" 3/8"
