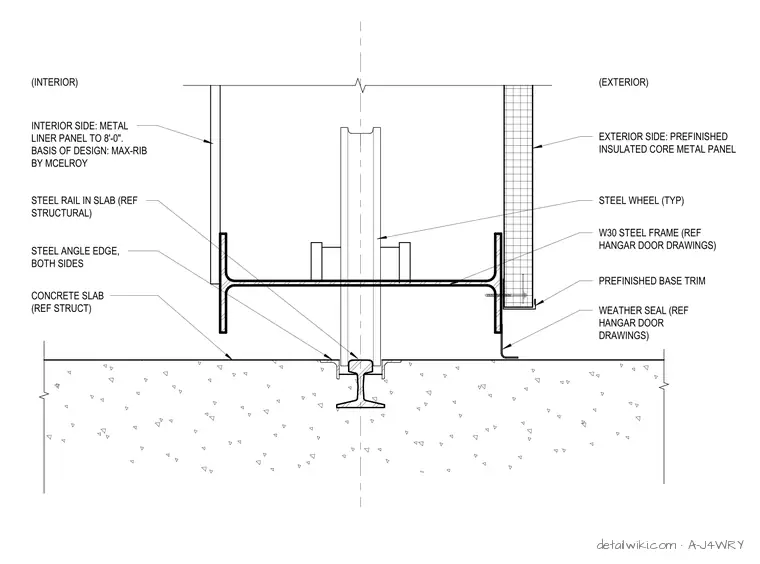

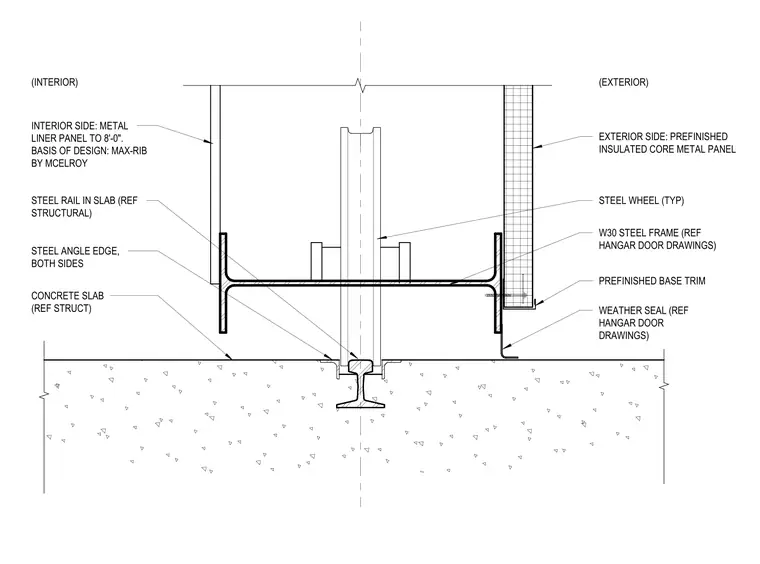

A steel rail is embedded into the concrete slab and interfaces with a steel wheel centered beneath a W30 structural steel frame. The exterior side features prefinished insulated core metal panels, prefinished base trim, and a weather seal. The interior side is finished with a metal liner panel extending to 8 feet, utilizing a Max-Rib profile by McElroy. Steel angles edge both sides of the trench in the concrete slab.
PREFINISHED BASE TRIM WEATHER SEAL (REF HANGAR DOOR DRAWINGS) (EXTERIOR) EXTERIOR SIDE: PREFINISHED INSULATED CORE METAL PANEL CONCRETE SLAB (REF STRUCT) INTERIOR SIDE: METAL LINER PANEL TO 8'-0". BASIS OF DESIGN: MAX-RIB BY MCELROY STEEL WHEEL (TYP) STEEL RAIL IN SLAB (REF STRUCTURAL) W30 STEEL FRAME (REF HANGAR DOOR DRAWINGS) (INTERIOR) STEEL ANGLE EDGE, BOTH SIDES
