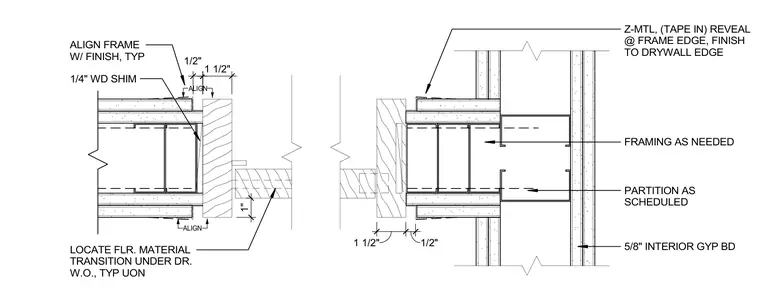

A wood door jamb and head condition intersects with a metal stud partition finished with five-eighths-inch interior gypsum board. The wooden door frame aligns with the wall finish and is shimmed with a quarter-inch wood shim as needed. A Z-metal reveal integrates at the frame edge to finish flush to the drywall edge. Floor material transitions locate directly under the door walk-opening unless otherwise noted.
PARTITION AS SCHEDULED FRAMING AS NEEDED 5/8" INTERIOR GYP BD Z-MTL, (TAPE IN) REVEAL @ FRAME EDGE, FINISH TO DRYWALL EDGE 1" ALIGN ALIGN 1 1/2" 1/2" LOCATE FLR. MATERIAL TRANSITION UNDER DR. W.O., TYP UON 1/4" WD SHIM ALIGN FRAME W/ FINISH, TYP 1/2" 1 1/2"
