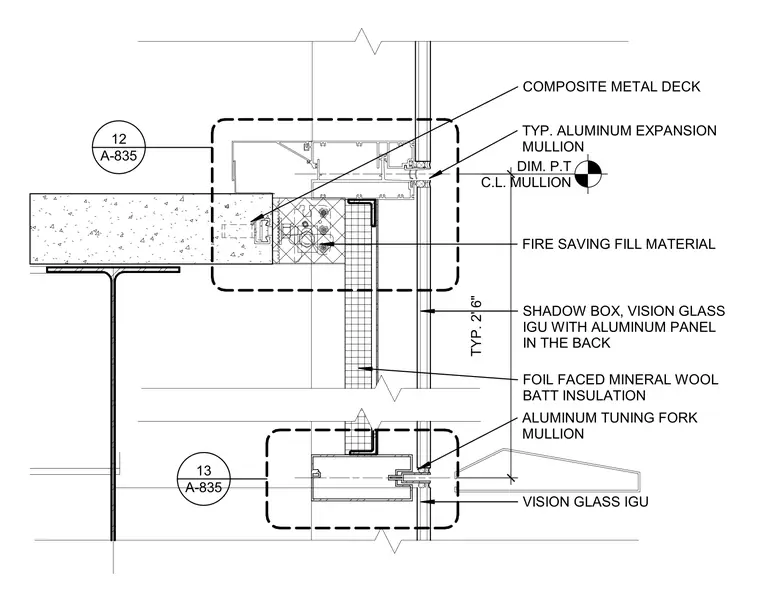

An aluminum curtain wall system interfaces with a composite metal deck and concrete slab edge. Fire-saving fill material packs the void between the slab edge and the aluminum framing. The assembly features an aluminum expansion mullion and a tuning fork mullion aligning with vision glass units and a shadow box backed by foil-faced mineral wool batt insulation. A steel beam supports the composite metal deck floor assembly.
DIM. P.T C.L. MULLION TYP. 2' 6" COMPOSITE METAL DECK FIRE SAVING FILL MATERIAL TYP. ALUMINUM EXPANSION MULLION ALUMINUM TUNING FORK MULLION SHADOW BOX, VISION GLASS IGU WITH ALUMINUM PANEL IN THE BACK FOIL FACED MINERAL WOOL BATT INSULATION VISION GLASS IGU A-835 13 A-835 12
