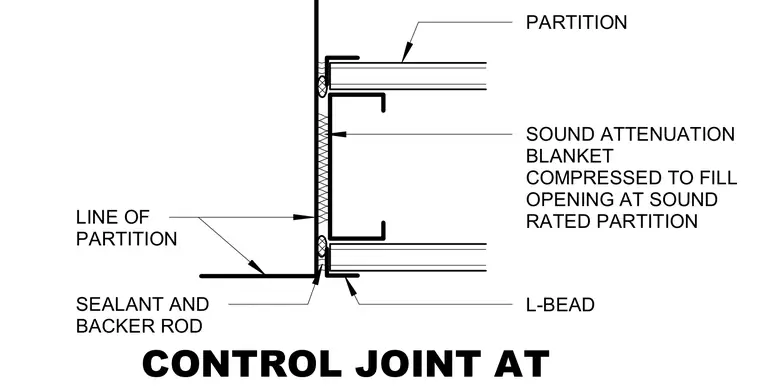

A sound-rated partition abuts a control joint where the gap is filled with compressed sound attenuation blanket insulation. The assembly terminates with an L-bead on both sides of the gypsum board edges. A sealant and backer rod seal the joint at the face of the partition intersection.
PARTITION SOUND ATTENUATION BLANKET COMPRESSED TO FILL OPENING AT SOUND RATED PARTITION L-BEAD SEALANT AND BACKER ROD LINE OF PARTITION CONTROL JOINT AT
