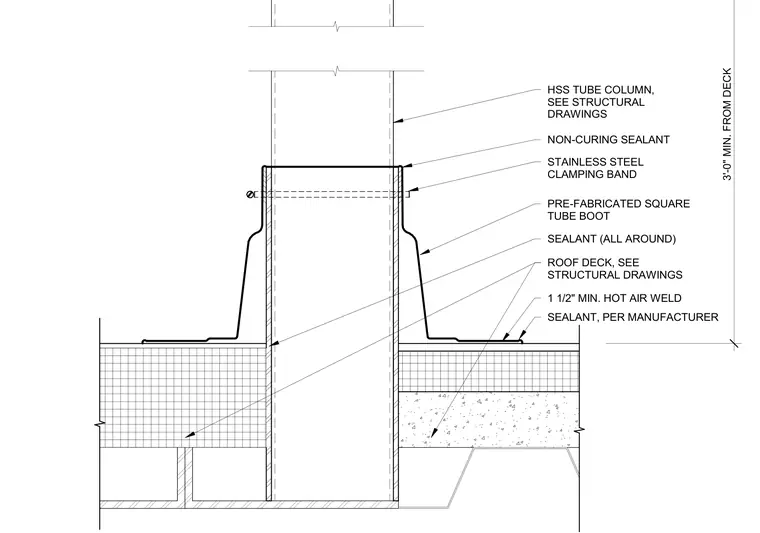

An HSS tube column penetrates the roof deck, sealed with a pre-fabricated square tube boot secured by a stainless steel clamping band and non-curing sealant at the top. The base of the boot is sealed to the roof deck with manufacturer-specified sealant and a one-and-a-half-inch minimum hot air weld positioned three feet minimum from the deck surface.
STAINLESS STEEL CLAMPING BAND PRE-FABRICATED SQUARE TUBE BOOT HSS TUBE COLUMN, SEE STRUCTURAL DRAWINGS NON-CURING SEALANT ROOF DECK, SEE STRUCTURAL DRAWINGS SEALANT, PER MANUFACTURER SEALANT (ALL AROUND) 1 1/2" MIN. HOT AIR WELD 3'-0" MIN. FROM DECK
