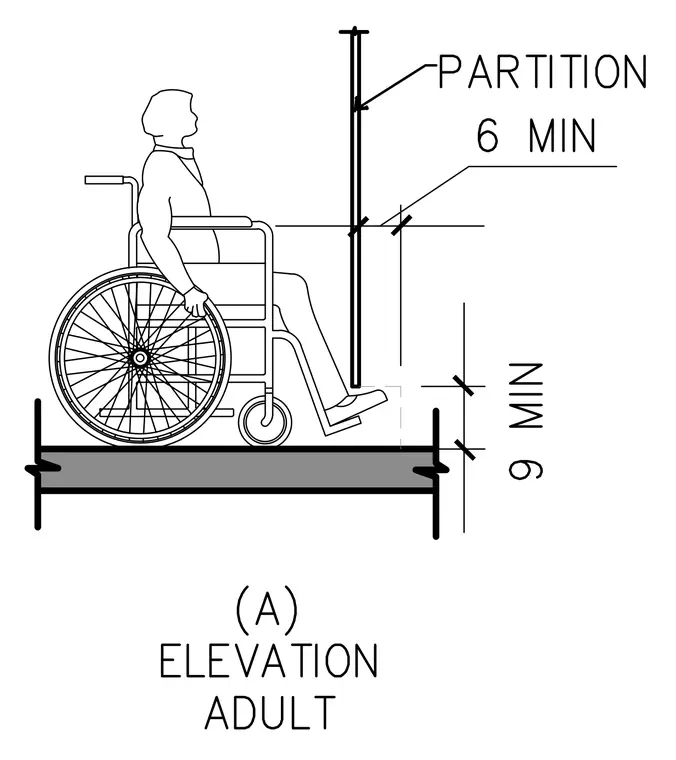

An interior partition elevation shows the required dimensional clearances for an adult in a wheelchair. The assembly establishes a minimum nine-inch vertical clearance from the floor to the bottom of the partition or toe space, and a six-inch minimum clearance relative to the wheelchair armrest height.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
