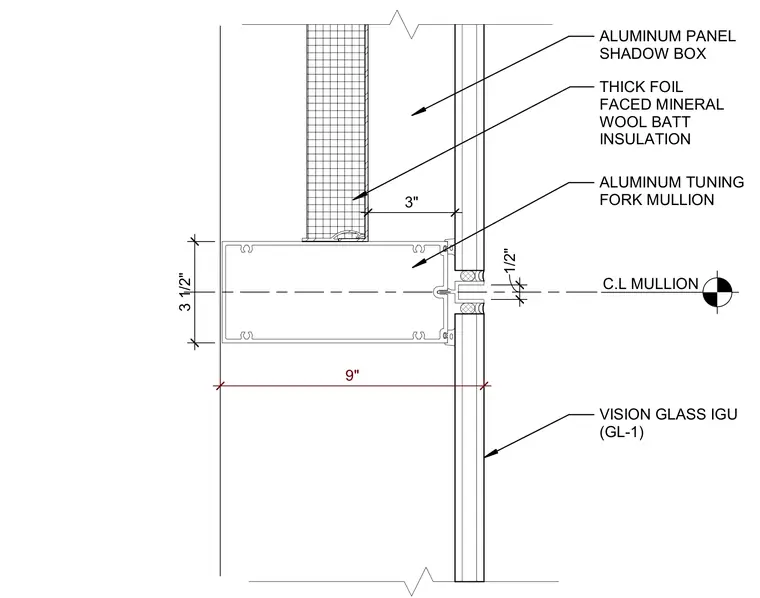

An aluminum tuning fork mullion connects vision glass insulated glazing units and an aluminum panel shadow box assembly. Thick foil-faced mineral wool batt insulation backs the shadow box panel, spaced three inches from the framing. The mullion features a center-line dimensioned half an inch off the glass joint and extends nine inches to the interior backing line. The profile is detailed with specific depth and width dimensions of three and a half inches.
C.L MULLION ALUMINUM PANEL SHADOW BOX VISION GLASS IGU (GL-1) ALUMINUM TUNING FORK MULLION THICK FOIL FACED MINERAL WOOL BATT INSULATION 3" 3 1/2" 1/2" 9"
